SKF TKBA11 Belt Alignment Tool

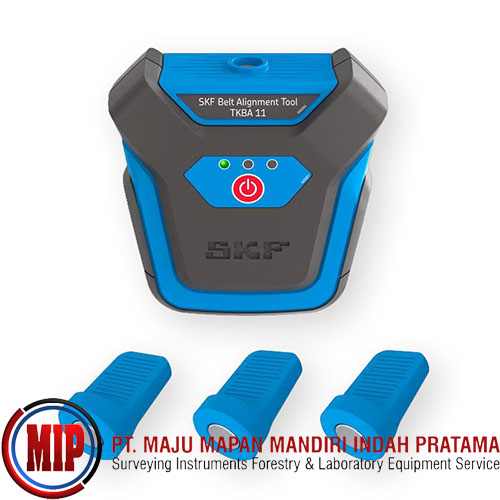

The belt alignment tool TKBA 11 has two components; a laser-emitting unit and three passive targets. Each is attached quickly and easily – using a powerful magnet – to the inside or outside face of a belt pulley or chain sprocket. The TKAB 11 alignment tool can be applied to most machines that use V belts, banded belts and ribbed belts – as well as those with chain sprockets.
Fast, easy attachment with powerful magnets Simplified alignment process - - one laser emitter with three passive targets Simultaneous adjustment of tension and alignment

Technical Details Dimensions
Transmitter dimensions (l x h x w) 98 x 97 x 52 mm
Target dimensions (l x h x w) 25 x 40 x 25 mm
Case dimensions (l x h x w) 260 x 85 x 180 mm
Display Recommended applications
Most machines using V belts, banded belts, ribbed belts, most other belts
Chain sprockets Mounting Magnetic, side mounted Laser type
Visible red line laser Laser wavelength 635 nm
Laser power max 1 mW
Laser line length (at 2 m) 2.4 m
Measurement accuracy angular (at 2 m) 0.02 °
Measurement accuracy offset 0.5 mm
Transmitter weight 0.25 kg
Target type Set of 3 Passive targets
Target weight 0.035 kg
Housing material
PC/ABS blend, overmoulded with TPU rubber
Colour Blue Dark Grey
Battery 3x AAA (Alkaline (incl.) or Rechargable)
Battery life 32 h
Degree of protection (IP) IP 40
Operating temperature range 0.0  –  40.0°C
Recommended storage temperature -20.0  –  60.0°C
Relative humidity 10 to 90%, non-condensing
Measurement distance 50.0  –  3000.0 mm
Product net weight 0.763 kg
