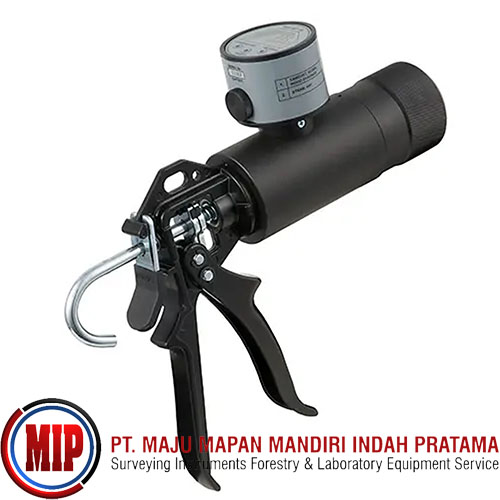

PCE WT1N Sawdust Moisture Meter

Absolute Moisture Meter PCE-WT1N Sawdust moisture meter for the absolute humidity of sawdust / sawdust (in% H2O) with very robust measuring chamber and easy operation
The moisture meter is intended for professional use in the exit control of sawmills or in the entrance inspection of pelleting plants, manufacturers of heating briquettes and other branches of production. The moisture meter determines the absolute humidity of sawdust and other types of biomass such as wood chips, hay, straw. The operation is fast and easy. The sawdust moisture meter is filled, the sample is pressed in the device and after setting the type of sample in the sawdust moisture meter, the moisture can be read. The sawdust moisture meter determines the humidity with the electrical resistance method. The sawdust moisture meter helps to quickly determine the moisture content. Another advantage lies in the practical handling, the small size and the very robust construction. The saw blade moisture meter is factory calibrated.

Fast moisture determination
Electrical resistance method
For biomass such as straw, hay, sawdust etc.
Sample size up to 120 cm³
Simple and fast operation
Robust design with overpressure protection
Battery operated
Incl. Carrying case

Specification:
Measurement range:
sawdust, wood chips*: 8 ... 30 %
straw, hay: 8 … 25 %
General information about the sawdust moisture meter
Resolution: 0.1 %
Accuracy: ±10 % of the measurement value
Volume of the measuring chamber:  120 cm3
Sample size of chipped wood:  *max. 20 x 15 x 15 mm
Compressive force during measurement: Approx. 0.2 MPa
Temperature compensation: Digitally adjustable
Display: 3 digits LCD display
Power supply:  1 x 12 V battery type A 23
Ambient temperature range: 0 ... +50 ºC
Dimensions: 300 x 220 x 65 mm
Weight:  990 g

Include:
(1) Absolute moisture meter PCE WT1N
(1) Battery
(1) Carrying case
(1) Instruction manual
