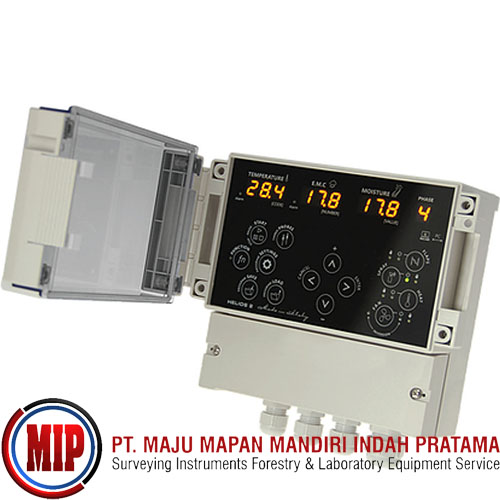

LOGICA HELIOS 2 Automatic Timber Kiln Controller

HELIOS2 kiln controller is the evolution of the well  known Helios and improves the performances of its predecessor thanks to a completely renewed electronics, always maintaining a very affordable price.
This instrument is particularly suitable to control small kilns or, generally, all systems in which is necessary to maintain an high standard of quality and to reduce costs:
​HELIOS2 is the instrument with the best price/performance ratio today available on the market.

Simply by setting the desired drying program, by writing it directly or by recalling a drying program from the memory (a standard one or a program previously saved by the user), HELIOS2 controller is able to run the drying cycle in a fully automatic way.

HELIOS2 includes into a single sealed box (IP55) the control panel and the amplifier for the signals coming from the timber probes. For this reason it must be placed close to the kiln, operation made easier thanks to its extended working temperature range.

Technical specifications
Temperature measurement: 0-110ºC
(resolution  0-99°C: 0,1ºC / >100°C: 0,5°C)
Equilibrium moisture measurement (EMC): 4-30% @ 25ºC (res. 0,1%)
Timber moisture measurement: 6-90% @25ºC (res. 0,1%)
Power supply: 85-265Vac 50/60Hz
Keyboard with touch tecnology.

HELIOS2 controller is supplied with the following parts:
Probes boxes with roof to be placed into the kiln, provided with clamp for cellulose, temperature probe, 10m long high insulation cables (Teflon®)
3 sets of 10 electrodes (L=15/20/25 mm) to be placed on wood
50 cellulose plates
4 silicon insulation cables for connection with   electrodes
Instructions manual with quick reference table
Accessories for assembly
