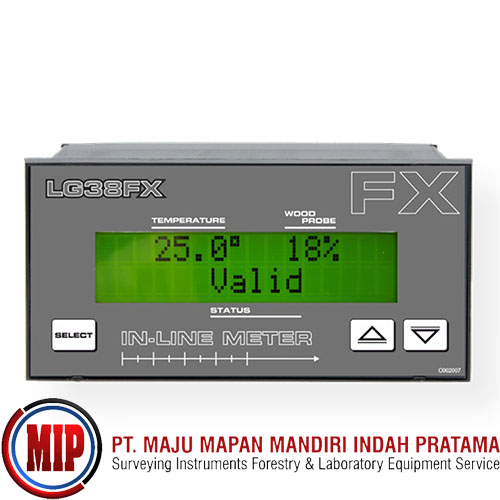

LOGICA LG38-FX Inline measurement of Timber

LG38FX is an accessible solution for the automatic in-line measurement of
wood moisture, able to create reports of the measured datas and to carry out
the automatic selection of the material, discarding the elements out of tolerance.
It is particularly suitable for applications where a very high measurement
speed is not required and the flow of wood can be stopped for a few seconds.
It consists of a panel meter, a temperature sensor (for automatic compensation
of the measured values) external electrodes to be applied on a piston (not included)
for the insertion of the electrodes and a PC software.
The system must be applied on a mechanical device (not included) capable
of stopping the flow of wood for the time necessary for the measurement,
of driving the electrodes and signaling to LG38FX the moment in which the
electrodes are in position.
After the received consent, LG38FX measures the moisture of the sample, then
transmits it to the PC as a ASCII, so it activates (or not) the “out of tolerance”
relay. The software on the PC displays the measured value and saves it into
a file that can be easily exported in a format compatible with the most popular
spreadsheets.

TECHNICAL SPECIFICATIONS
• Power supply: 230Vca 50/60Hz +/- 10%
• Power consumption: 15W
• Operating temperature: 0/+ 40°C [32/104 ° F]
• Temperature measurement: 0-99°C [32/210 ° F]
• Temperature measurement resolution: 0.1 °
• Temperature probe: NTC thermistor (for wood moisture
measurement compensation)
• Wood moisture measurement: 8-90% @ 25°C (automatically
compensated based on the measured temperature)
• Measurement stabilization time: about 2”
• Relay contacts capacity: 250Vca - 5A
• Internal protection fuse: 5x20mm 5A Fast
• Product size: 144 x 72 x 154 mm

INPUTS
• Power supply (230Vac)
• 1 Probe to measure wood moisture
• 1 Temperature probe
• 1 Contact measurement valid
OUTPUTS
• 1 RS485 serial output
• 1 “out of tolerance moisture” relay
