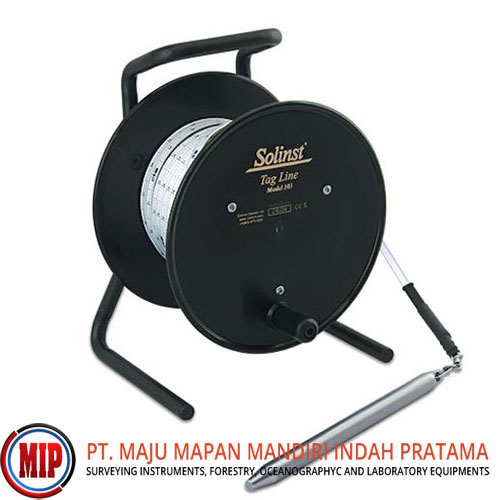

SOLINST 103 300-Meter Flat Tape Tag Lines

Solinst Model 103 [110579] Flat Tape Tag Line with 3/4" x 1 ft. (19 mm x 30 cm) Weight & Metric Increments, 300m. The Solinst Tag Line uses a weight attached to a laser-marked flat tape and is principally designed for use during the installation of monitoring wells. The Tag Line also provides a simple method to measure the depth to the bottom of a well. It is also ideal as a multipurpose marked support cable. The Model 103 Flat Tape Tag Line uses a 3/8" (10 mm) PVDF flat tape.

The tape has a break strength of greater than 220 lbs (100 kg). It has a thick dog bone design that prevents adherence to wet surfaces and allows it to hang straight. The well tape comes with laser markings every 1/100 ft. or each millimeter. Lengths are 100 ft to 1000 ft. (30 m to 300 m). The standard stainless steel tag weight is 1.5 lbs (0.68 kg) and measures 3/4" x 1 ft. (19 mm x 30 cm). A narrow tag weight, 1/2" x 1 ft. (13 mm x 30 cm), weighing 0.65 lbs (0.30 kg), is also an option. Tag weights have tapered ends to minimize hang-ups during deployment and return to the surface and can be clipped on and off the tape. This allows the use of the reel-mounted marked well tape for other uses, such as bailer or pump, and packer deployment.

Part Number: 110579
Probe type: 3/4" x 1 ft. (19 mm x 30 cm)
Tape length: 300 cm
PVDF Laser Marked Tape: LM3: Meters and centimeters: with markings every mm
Markings are laser etched every 1/100 ft or each mm
Standard tag weight measures 1.5 lbs (0.68 kg) and is 3/4" x 1 ft. (19 mm x 30 cm) (included)
Includes tape guide to protect the tape from damage on rough edges

Include:
(1) 110579 - Tag line mounted on reel
(1) 3/4" x 1 ft. (19 mm x 30 cm) tag weight
(1) Tape guide
(1) Instruction Manual
