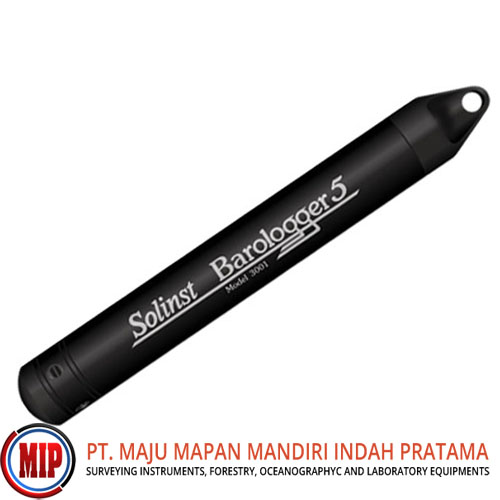

SOLINST 3001 Barologger 5 Barometric Pressure Logger

Solinst Model 3001 [114608] Barologger 5 Barometric Pressure Logger. The Leveloggers measure absolute pressure (water pressure + atmospheric pressure) expressed in feet, meters, centimeters, psi, kPa, or bar. The most accurate method of obtaining changes in water level is to compensate for atmospheric pressure fluctuations using a Barologger 5, avoiding time lag in the compensation. The Barologger 5 is set above high water level in one location on site. One Barologger can be used to compensate all Leveloggers in a 30 km (20 mile) radius and/or with every 300 m (1000 ft.) change in elevation. The Levelogger Software Data Compensation Wizard automatically produces compensated data files using the synchronized data files from the Barologger and Leveloggers on site.

The Barologger 5 uses pressure algorithms based on air rather than water pressure, giving superior accuracy. The recorded barometric information can also be very useful to help determine barometric lag and/or barometric efficiency of the monitored aquifer. The Barologger 5 records atmospheric pressure in psi, kPa, or mbar. When compensating submerged Levelogger 5, Edge, Gold or Junior data, Levelogger Software can recognize the type of Levelogger and compensate using the same units found in the submerged data file (e.g. feet or meters). This makes the Barologger 5 backwards-compatible.

Part Number: 114608
Temp. Compensation Range: -10°C to 50°C
Single-eye optical interface - easier to clean, more scratch-resistant
Increased memory: 150,000 sets of data
Data Compensation Wizard in the Levelogger Software simplifies barometric compensation

Include:
(1) 114608 - Barometric Pressure Logger
NOTE: Required Items L5 Direct read or suspension wire cables; Communications package for programming and downloading data.
