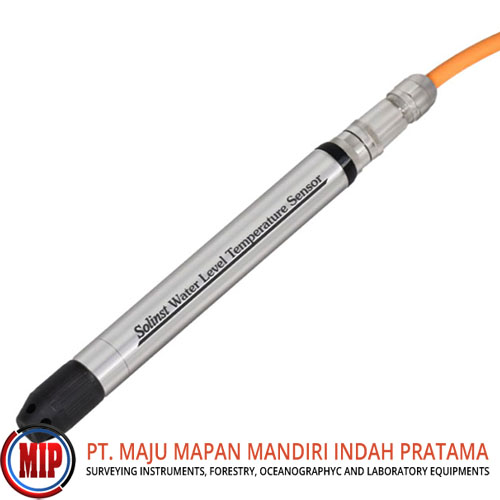

SOLINST 301 Water Level Temperature Sensor

The Solinst Water Level Temperature Sensor is a compact, allin-one submersible hydrostatic level transmitter that providescontinuous, stable and accurate water level and temperaturereadings for a wide variety of applications.The water level pressure sensor and temperature sensor areenclosed in a slim, robust 22 mm x 192 mm (7/8" x 7.55") 316Lstainless steel housing. Double o-ring seals prevent leaks and aFaraday cage design protects against power surges and lightning.Each probe features a removable nose cone for optional use ofthe 1/4" NPTM threaded connection.

The durable water level pressure sensor provides 0.05% FSaccuracy with automatically temperature compensated readings.There are six pressure ranges to choose from (5-200 m), withoptions for absolute and gauged (vented) pressure sensor setups.The 301 Water Level Temperature Sensor works with digitalprotocols – MODBUS and SDI-12 – and are easy to integrateinto your existing SCADA or PLC systems.Communication cable assemblies are available in lengths up to300 metres. The cables are easily and securely attached to thesensor using a threaded connection.Simple PC software utilities are used to set up the sensor forthe different protocols, perform simple diagnostics, and updatesensor firmware if required. A USB-A programming cable isprovided for connection to the PC.

Vented or absolute pressure sensor options with 0.05% full scale accuracy
SDI-12, RS-485 Modbus RTU, and 4-20mA protocols for interfacing with data loggers and PLC systems
Built-in hydrophobic filters eliminate the need for desiccant replacement on vented sensors

Include:
(1) 301 Water Level Temperature Sensor
(1) WLTS Software Utility (free download on solinst.com)
(1) Instruction Manual
NOTE: Required : Communication/Vented Cable,  USB-A Programming Cable
