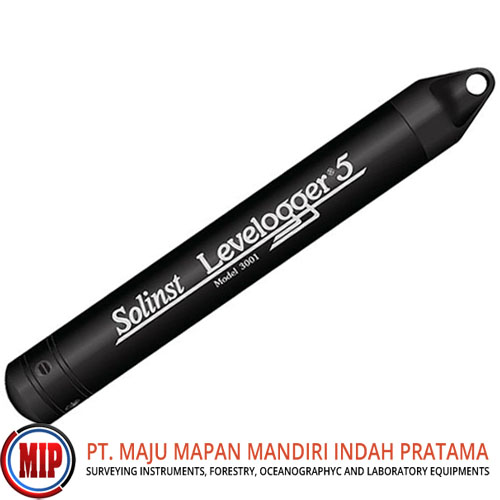

SOLINST 3001 Levelogger 5 Water Level & Temperature Logger

Solinst Model 3001 [114614] Levelogger 5 M200 Water Level & Temperature Logger, 200 m (656.2 ft.) Range. The Solinst Levelogger 5 combines a pressure sensor, temperature detector, 10-year lithium battery, and datalogger, sealed within a 22mm x 160mm (7/8" x 6.3") stainless steel housing with a corrosion-resistant coating baked-on using polymerization technology. The Levelogger 5 measures absolute pressure using a Hastelloy pressure sensor and offers high resolution and an accuracy of 0.05% FS. Readings are stable in extreme pressure and temperature conditions. The Hastelloy sensor can withstand 2 times over-pressure without permanent damage. Combined with the durable coating inside and out, the Levelogger 5 has high corrosion and abrasion resistance in harsh environments. The logger uses a Faraday cage design, which protects against power surges or electrical spikes caused by lightning. Its durable maintenance-free design, high accuracy and stability, make the Levelogger 5 the most reliable instrument for long-term, continuous water level recording.

Part Number: 114614
Range Full Scale (FS): 200 m (656.2 ft.)
Single-eye optical interface - easier to clean, more scratch-resistant
Increased memory: 150,000 sets of data
Double o-ring seals for increased leakage protection
Applications:
Aquifer characterization: pumping tests, slug tests, etc.
Watershed, drainage basin and recharge monitoring
Stream gauging, lake and reservoir management
Harbour and tidal fluctuation measurement
Wetlands and stormwater run-off monitoring
Water supply and tank level measurement
Mine water and landfill leachate management
Long-term water level monitoring in wells, surface water bodies and seawater environments

Include:
(1) 114614 - M200 Water Level & Temperature Logger, 200 m (656.2 ft.) Range
(1) Instruction Manual
NOTE: Requires a deployment solution (either direct read or suspension wire cables), and a communications package for programming and downloading data
