SOLINST 104 Sonic Water Level Meter

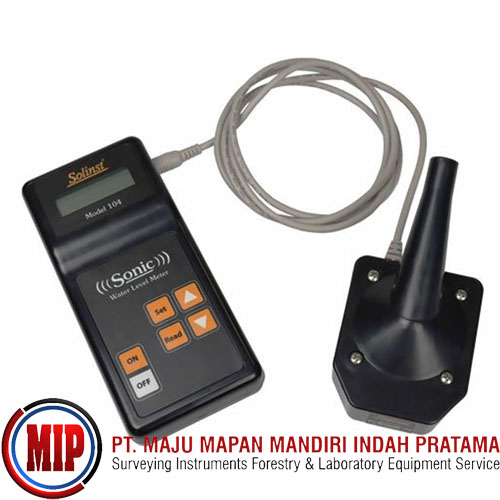

The Solinst Sonic Water Level Meter is a simple-to-use, handheld, portable unit. It consists of a Control Unit and connected Probe, and is supplied with a plastic cover for larger wells and a Solinst Field Bag. The Sonic Water Level Meter Probe transmits a sound wave into the well or pipe and measures the time for the pulse to return after contacting the water. Readings are shown on the clear LCD display on the Control Unit. The Sonic Water Level Meter allows the programming of parameters like well diameter, offsets, temperature, etc. Maximum and minimum detection ranges can also be set to ignore any interference from known well features or obstructions, and to narrow down the measurement range for obtaining the most accurate water level readings possible.

Sonic Water Level Meter Specifications
Control Unit dimensions: 19 x 9 x 4 cm (3.5 x 7.5 x 1.5")
Control Unit weight: 390 g (14 oz)
Probe dimensions: 16 x 8 x 7 cm (6 x 3 x 3")
Probe diameter: 1.7 cm (5/8")
Cable length: 1.8 m (6 ft)
Operating temperature: -20 to 45ºC (-10 to 110ºF)
Power: 6 AA replaceable alkaline batteries
Battery life: Up to 500 hours of use
Up to 21 days in power save mode
Units of measurement: Metric or English options
Accuracy: 3 cm (0.1 ft)
Resolution: 1 cm (0.05 ft)
Water level reading update
time:
~ 1 sec @ 150 m (500 ft)
~ 4 sec @ 600 m (2000 ft)
Operating range: 3 to 600 m (9 to 2000 ft)

Sonic Water Level Meter Features
• Measures down to 600 m (2000 ft); water level can be displayed in Metric or English units
• Ability to set in Power Save mode to prolong battery life
• Can set the water level measurement range minimum and maximum to ignore interference from known well features
• Settings allow you to account for different well/ drop tube diameters and heights
• Backed by a Solinst 3-year warranty
• Supplied with a plastic cover for larger wells and a convenient Solinst Field Bag
