FLOWLINE EchoPod UG06 Reflective Ultrasonic Level Transmitter

Rp. 32,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

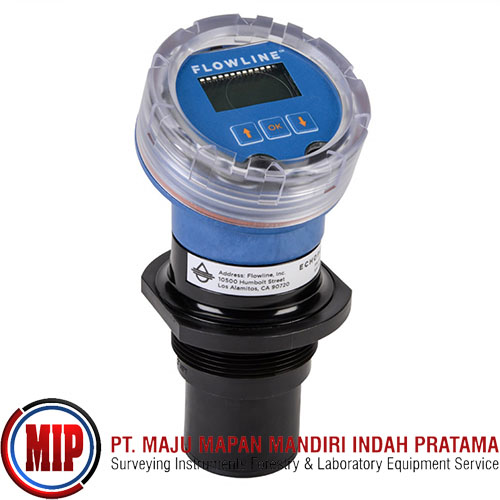

Flowline, UG06-0001-00, EchoPod Reflective Ultrasonic Liquid Level Transmitter 6m (19.6') Range, 2" NPT, with Display, without Fob.

The Flowline EchoPod UG06 and UG12 reflective ultrasonic level transmitters offer continuous level measurement up to 39.3 feet (3m) and feature a 4-20 mA analog signal output and four relays. Additionally, configuration of the UG06 and UG12 can be done via WebCal software (free download). What makes this Flowline EchoPod ultrasonic level transmitter stand out is its proprietary Reflective Technology™ which allows for reliable measurement in condensing environments.

Each relay of the Flowline EchoPod UG06 and UG12 reflective ultrasonic level transmitters can be configured for alarm, automatic fill or empty functions. Common applications for these EchoPod units include day tank, IBC or drum, cooling tower, ski or machine, process tank and waste sumps. Additionally, the UG06 and UG12's Reflective Technology™ make it an ideal fit for small tanks with non-foaming or highly vaporous media such as chemicals, water, wastewater and oil.

Features:
Reflective Technology™ measures reliably with condensation
Corrosion resistant PVDF transducer with IP68 PP enclosure
Fail-safe diagnostics with selectable signal fail-safe outputs
LCD display indicates level in inches, meters or percent of span
Narrow 3” (7.6cm) beam width for applications with limited space
Windowed enclosure cap provides liquid tight level indication
Configuration via push button display or WebCal software
Automatic temperature compensation from -40º to 80º C.

What's In The Box:
(1) EchoPod UG06 [UG06-0001-00] Reflective Ultrasonic Level Transmitter, 8in to 19.6ft (20cm to 6m)
(1) Instruction manual
