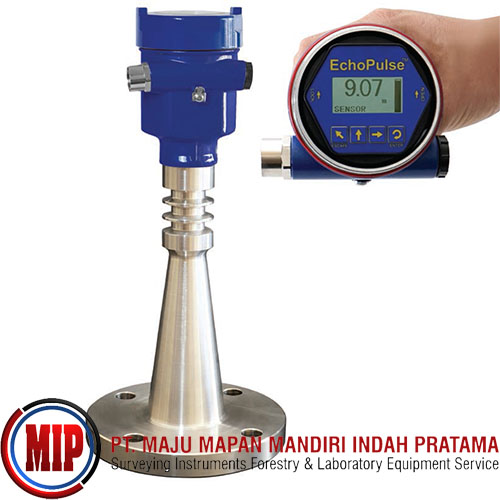

FLOWLINE EchoPulse LR20 Radar Level Transmitter

Rp. 88,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The Flowline LR20 EchoPulse LR20 Pulse Radar Level Transmitter provides continuous liquid level measurement up to 98.4ft (30m) with a 4-20 mA signal output, and is configured via its integral push button display module. The non-contact liquid level sensor is intended for chemical storage or process applications in above or below grade tanks of any material. Select this sensor for challenging application conditions with corrosive media, light surface foam or agitation, higher temperature or pressure, condensation or vapor, and installation in a flange fitting. Offered in two antenna sizes, select the appropriate size based upon the desired beam angle, available mounting port size and process condition. The longer the antenna, the narrower the beam width and stronger the RF signal output for more challenging processes.

Features
12in to 65.6ft (30cm to 20m)
Accuracy: ±3mm
Process temp: -40 to 302°F (-40 to 80°C)
Pressure rating: -14.5 to 72 psi (-1 to 5 bar)
26 GHz. pulse radar is unaffected by vapor or condensation
12" (30cm) dead band enables utilization of the entire tank
316 L antenna with PTFE inner shield for corrosive media
Process mount: 3 or 4 inch flange (ANSI)
IP67 rated
Integral display
