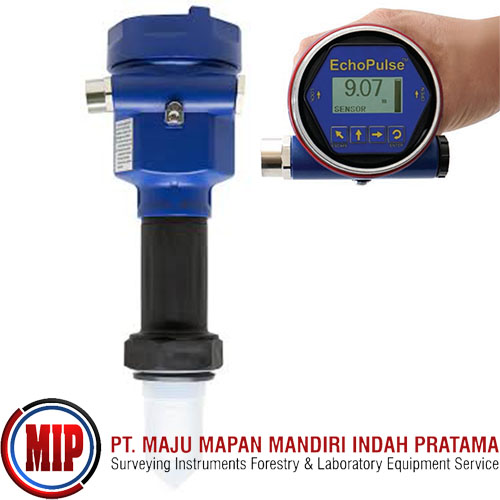

FLOWLINE EchoPulse LR10 Radar Level Transmitter

Rp. 68,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The Flowline EchoPulse LR10 Pulse Radar Level Transmitter provides continuous level measurement up to 32.8ft (10m) with a 4-20 mA signal output, and is configured via its integral push button display module. The non-contact liquid level sensor is intended for chemical or water storage applications in above grade metal or reinforced concrete tanks or below grade tanks of any material. Select this sensor for easy application conditions with corrosive media, light agitation, condensation or vapor, and installation in a low-profile tank adapter or flange fitting.

Features
12in to 32.8ft (30cm to 10m)
±5mm accuracy
-40 to 266°F (-40 to 130°C) process temperature
-14.5 to 43.5 psi (-1 to 3 bar) pressure rating
26GHz pulse radar, unaffected by vapor & condensation
PTFE encapsulated antenna & process mount
12in (30cm) dead band for utilization of the entire tank
Integral display
Not for use with non-metallic tanks (FCC regulation)
Use the LR15 for non-metallic tanks
