FLOWLINE EchoPulse LR30 Radar Level Transmitter

Rp. 85,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

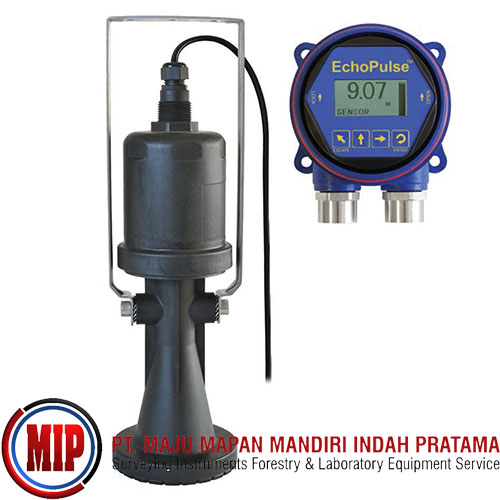

The Flowline LR30 EchoPulse Pulse Radar Level Transmitter provides continuous liquid level measurement up to 98.4 feet (30m) with a 4-20 mA signal output, and is configured via its remote push button display module. The non-contact liquid level sensor is intended for industrial wastewater, municipal storm or sewer lift station, reservoir, river, canal or flume applications located below or above grade. Select this sensor for challenging application conditions that may include light surface foam or agitation, small trash or plant material, wind, condensation or vapor. Each comes with a 32.8 foot (10m) cable, mounting bracket and display module. The sensor is intended for bracket mount or conduit mount installation suspended above the liquid level.

Features
12in to 98.4ft (30cm to 30m)
±3mm accuracy
Process temp: -40 to 212°F (-40 to 100°C)
Remote push button display module
Process mount: 304 bracket or 1" NPT
IP68 sensor enclosure
316 L mounting bracket
Integral display
26 GHz pulse radar is unaffected by sump process conditions
