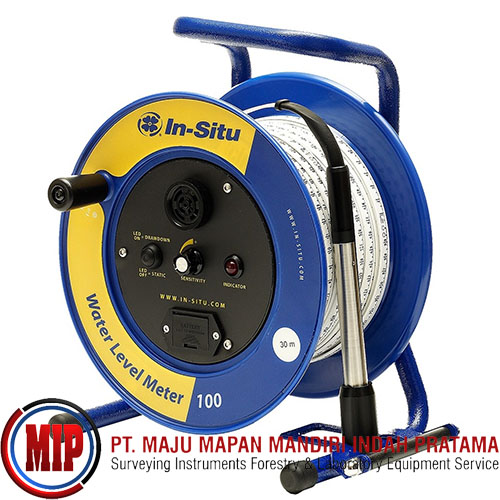

IN-SITU 100 (100 Meter) Water Level Meter

The In-Situ Water Level Meter 100 is an economic model of the Water Level Meter 200, with Kevlar-reinforced polyethylene tape and stainless steel conductors. This affordable water level tape offers long-lasting performance for well drillers, pump installers, and other service users. With static and drawdown modes, the Water Level Meter 100 can take static level readings and then switch to drawdown mode to perform low-flow and pump tests. Additionally, the IP68-rated probe can be submerged at depths of up to 300 m (1,000 ft) to determine the bottom of the well. The Water Level Meter 100 comes complete with easy-to-read black print on white tape. High quality, Kevlar®-reinforced polyethylene tape with stainless steel conductors, graduated in feet or meters. The probe is constructed of stainless steel and Teflon® with a diameter of .63" (16mm) and a length of 7.5" (190mm). The probe is fully sealed, pressure tested to 500 psi, and supports both static and drawdown modes.

Features:
Submersible stainless steel probe
Nylon or aluminum reels (for tapes longer than 150 m or 400 ft) mounted on sturdy polyurethane-coated steel frames
Available in metric or U.S. units in lengths up to 600 m (2,000 ft)
Accuracy to each millimeter or 0.01 foot
Breaking load over 45 kg (100 lbs)
DC to AC conversion prevents corrosion and mineral buildup on probe
Sensitivity dial filters out false signals from falling water
Removable, sealed electronics module
Security link protects tape by releasing the probe if it becomes stuck in the well

Include:
(1) A submersible probe, tape, and reel
(1) Well hook
(1) 9V battery
