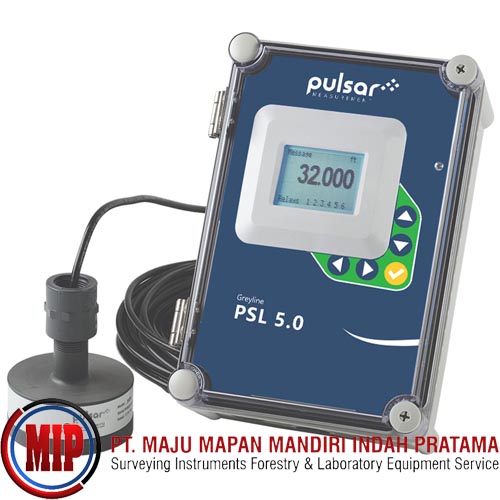

PULSAR GREYLINE PSL 5.0 Level Controller

The Greyline Instruments PSL 5.0 level controller uses a non-contacting ultrasonic sensor mounted above the liquid and is ideal for sewage pump stations, lift stations, wet wells and tank level control. The PSL 5.0 includes six independently programmable control relays for pump or valve control, level alarms, dialers, temperature alarm and echo-loss alarm.

Setting up and using the PSL 5.0 is easy. Simply mount the non-contacting, ultrasonic sensor in the tank or wet well and install the watertight electronics in the control room or any location within 500 ft. Use the simple menu system and built-in keypad to set up measurement range, relay set points and pump alternation sequence. A relay/pump run time report is updated and stored automatically for viewing on the unit's backlit LCD display.

The PSL 5.0 sets a new level of reliability. It operates with an ultrasonic level transducer as its primary sensor but also accepts connections from 4-20mA level sensors for redundancy. If the ultrasonic transducer loses signal from foam on the water surface for example, the redundant sensor will take over reading instantly. As soon as the ultrasonic sensor receives new echoes, it will resume function as the primary sensor. The PSL 5.0 will auto-calibrate the redundant sensor and monitor it continuously to ensure availability during primary sensor failure.

Features
Controls, transmits and displays level
Designed for pump stations, wet wells and tank level control
Accuracy: ±0.25% of Range or 2 mm (0.08"), whichever is greater
Non-contacting ultrasonic sensor
Watertight, dust tight NEMA4X (IP67) polycarbonate enclosure
Accepts pressure sensor input for redundant monitoring
6 relays for pump control, pump alternation and level alarms
Isolated 4-20mA output
Built-in 5-key calibrator
Logs and displays relay run times
Large backlit LCD display
Optional plug and play data logger

What's in the Box
PZ34 PVC level sensor, 32 ft.range
25 ft. coaxial sensor cable
Auxiliary sensor (accepts redundant 4-20mA sensor connection)
Installation and operation manual
