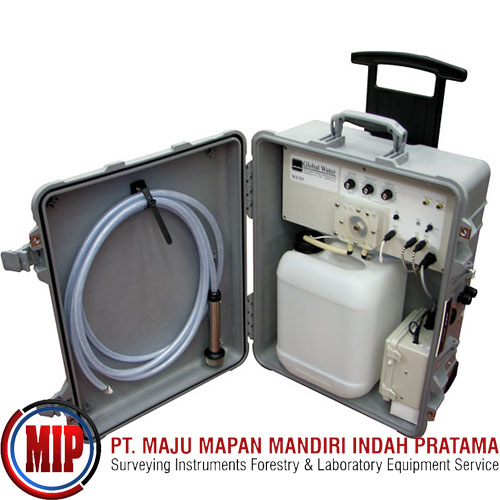

GLOBAL WATER WS705 Wastewater / Stormwater

The WS705 single-bottle composite/discrete water samplers combine all the features needed to meet a wide variety of water sampling requirements, including those for stormwater, industrial discharge, water and wastewater treatment, waste collection systems, rivers, and streams. The WS705 composite/discrete water sampler's state of the art water sampler controller gives you complete control over your water sampling process.  With the composite/discrete water sampler's sample size control, you can take individual time-weighted composite samples or full-bottle discrete grab samples in a 2.5 gallon sample bottle.  The composite/discrete water sampler's sample interval control allows you set the time between individual composite samples or enable the external trigger mode for flow proportional sampling.  A start delay timer allows you to start multiple composite/discrete water samplers in the field at the same time, or to delay drawing a water sample after a triggering event so that your water sample better represents the water source.

Features:
Ideal for wastewater, industrial and environmental sampling
CE Certified
Quick disconnect pickup hose conveniently stored inside the enclosure for easy transport
Simple to operate - no programming required
Heavy duty wheels and retractable handle built in
Rugged construction for harsh environments
Can take timed or flow proportional samples
Peristaltic pump prevents sample contamination
Automatic backflush clears pickup strainer and hose
Enclosed battery compartment and smart battery charger to improve battery life
Refrigerated/cooler sampler options available
The easiest and most reliable method for collecting water quality samples

Includes:
(1) Rugged
(1) Rainproof
(1) Lockable carrying enclosure
(2) Gallon polyethylene sample bottle for composite sample
(1) Peristaltic sampling pump
(1) Control panel enclosed logic timer/controller
(1) 15 ft reinforced PVC sample pickup hose with removable debris strainer
(1) 12 V 5 AH rechargeable gel cell battery
(1) BC100 Smart Charger

Specifications:
Operating Temperature: 32° to +158°F (0° to +70°C)
Materials: Enclosure: Expanded UV protected PVC;  Bottle: 2.5 gallon Polyethylene;  Pickup Hose: 15 ft (4.6 m) reinforced PVC 1/4 inch ID polyethylene flexible tubing section with 20-Mesh intake strainer and quick-disconnect fittings.; Pump Tubing: Norprene 1/4" ID, 7/16" OD
Sample Pump:  Flow Rate: 1000 ml per minute at a 4 foot head;  Type: Peristaltic;  Maximum Lift: ~20 ft (6 m)
Battery: Rechargeable 5 AH Gel Cell
Battery Life: ~1 hour, continuous pumping under load;  Standby: 3 months while still retaining enough power run the pump to capacity
Start Delay: 16 time settings from 0 to 12 hours
Composite Interval: 15 time settings from 5 min. to 12 hours plus an External Trigger mode setting
Sample Size: 15 composite sample sizes from 50ml to 2 liters plus a Full Bottle discrete setting (Approximate sizes at 4 foot head)
External Trigger Input: 250 mS minimum pulse width;  Switch closure or 4-30VDC
Pulse Output: 5VDC one-second pulse;  1000 ohm output impedance
Bottle Switch Input: Switch closure Input; Floating switch in bottle
Rain and Water Sensors: Optional moisture sensors or switch closure inputs
Internal Fuse: 10A Slow-Blow
Charger: 18VDC Regulated Switching Supply, 330mA 6 Watt, 2.1mm Connector
Size of unit: 22x18x10 inch (56x45.7x25.4 cm) (HxWxD)
Weight: 26 lb (11.7 kg) (Shipping Weight 28 lb (12.7 kg))
Certificates: CE Compliance
