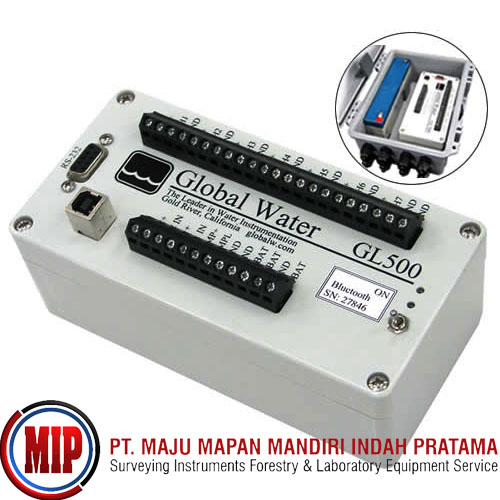

GLOBAL WATER GL500 Multichannel Data Logger

Features:
Multichannel datalogger for recording a variety of sensor signals
Includes both USB and serial communications ports
Four sample modes: 10 times per second, timed, logarithmic, and exception
Monitor up to 9 sensors at a time in addition to battery voltage
Batery powered for remote locations
User friendly Windows and Windows™ CE-based PDA software included
Global Water's rugged GL500-7-2 Global Logger offers state-of-the-art technology for continuous datalogging, storage, and retrieval. The logger features 7 analog channels and 2 digital channels for data recording. It also offers USB and serial communication ports for easy communication with a Windows™-based PC or PDA.  The GL500-7-2 can record over 40,000 readings and has four unique recording options: fast (10 samples per second), programmable interval (1 second to multiple years), logarithmic, and exception. The datalogger also has a sample on demand input that triggers a recording of special events. Daily start and stop alarm times can be programmed to limit recording intervals.  The Global Logger includes 7 channels that can accept any 4 to 20 mA sensor, including many of Global Water's level, water quality, and weather sensors. The datalogger also includes two scalable digital inputs that accept switch closure signals from rain gauges or relays, as well as pulses from various external monitoring and control devices. The logger provides switched power to analog sensors based on sample interval and sensor warm-up time settings. You can quickly connect sensors to the datalogger's terminal strips, and you can easily calibrate sensors using the Global Logger II software.

Includes:
Global Water Datalogger Software, Windows-based software
GL450-7-1 Optional Data Logger Enclosure
Specifications:

Global Data Logger
Memory:  Non-volatile flash memory
Power: Voltage:  7.2 VDC Min. to 24.0 VDC Absolute Max; Standby Current:  70uA Typical;  Logging Current:  5mA Typical + sensor current
Analog Sensor Inputs:  4-20mA (0-5VDC as factory option);  Resolution:  12-Bit, 4096 Steps;  Channels:  7 Input channels + battery voltage monitor;   Sensor Warm-up Time:  Programmable, 0-60 Sec
Digital Inputs:  2 Independent pulse counters;  Maximum Input Voltage:  24VDC; Maximum Frequency:  100Hz;  Minimum Pulse Width:  2mS;   Maximum Count:  65,535 (16-Bit)
Sample Now Input:  Sample-on-Demand input, software enabled;  Maximum Input Voltage:  24VDC; Minimum Pulse Width:  2mS
Sample Modes:  Fixed Interval Programmable from 1 Sec. to >1 Year;  High Speed 10 Samples per second;  Logarithmic Sample Rate (Approximation); Exception (Log only on deviation from previous reading).
Storage Capacity: 40,879 Recordings for all inputs plus time stamp
Data Overwrite: Select memory wrap or unwrap (unwrap will stop logging data once memory is full)
Communication Ports: RS-232 DB9 or USB Type B
Selectable Baud Rates: 9600, 19200, 28800, 38400, 57600, 115200
Clock: Synchronizes to the time and date of user's computer
Operating Temperature: Industrial, -40 to +185°F (-40 to +85°C) (Battery may not apply)
Enclosure: Expanded UV protected PVC ((5x2x3 inch (12.7x5x7.6 cm))
Weight: 1.5 lbs (680 g) (with weather-proof enclosure)

Bluetooth
Format: Bluetooth 2.0 SPP (Serial Port Protocol)
Baud Rate: Auto Detect up to 115K Baud
Power: 7.2-24 VDC Absolute Maximum
Current: 30mA Average
Range: 20 Feet Maximum
Operating Temp: -40° to +185°F (-40° to +85°C)
Compatible Software: Global Logger II version 2.1.5 or higher;  Global Logger II PDA software version 2.0.1;   FL16 Flow Monitor version 2.3.2

Data Logger Software
Compatible with Microsoft's Windows 98, ME, 2000, NT, XP, Vista, and 7
Windows and Excel are trademarks of the Microsoft Corporation
Tabular Display/Printout
Data in standard spreadsheet format (.CSV)
Programmable alarm start and stop times
Field calibration software and help files included PDA software: CE and Mobile compatible.

Optional Weather-Proof Enclosure
Expanded UV protected PVC (9" x 7.5" x 4.5")
Optional Battery (Included with Weather-Proof Enclosure): 12 Volt, 2.2 A/hr., Rechargeable (Gell Cell)
Weight: 3.5 lbs (with data logger)
