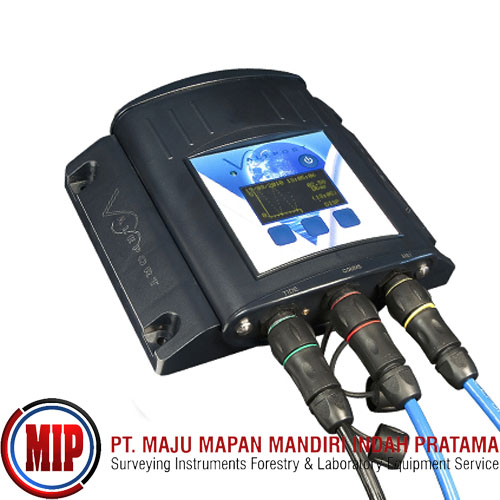

VALEPORT TideMaster Portable Tide Gauge
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The TideMaster tide gauge has been designed to provide an accurate, versatile and easily deployed tide gauge for use in short or long term hydrographic survey operations. Optional OLED control/display panel, Bluetooth and Secure Digital (SD) card memory combined with low power consumption and user selectable sampling regime allow up to a years‟ autonomous operation, whilst optional telemetry packages extend the capabilities for real time operations. TideMaster is compatible with the MIDAS Surveyor GPS Echo Sounder system and a range of hydrographic processing software.
SPECIFICATIONS
Transducer Type: Vented strain gauge, with stainless steel mounting bracket.
Range: Standard 10dBar (approx 10m), with 20m cable. Other pressure ranges and cable lengths are available.
Accuracy: ±0.1% Full Scale.
Calibration: Held within logging unit.
Dimensions: 18mm diameter x 80mm.
Logging Unit
Housing: Injection moulded housing, waterproof to IP67 (1m for 30 minutes), with injection moulded mounting bracket.
Display: Optional 128x64 OLED keypad display for configuration and data display.
Internal Power: 4 "C" cells within separate sealed compartment.
Tool-less battery change. Up to a year of autonomous sampling.
External Power: 9-30 Volts DC
Memory: 512 MB SD card memory allowing for effectively unlimited storage.
Sampling: Raw data sampled at 8Hz and logged as average over burst.
6 pre-programmed burst modes + custom sampling mode.
Continuous Sampling at 1 Hz
Switching: Power switch on unit. LED to indicate operation.
Resolution: Data logged to 1mm resolution.
Comms: Integral Bluetooth for short range telemetry and communications
RS232/RS485 for cabled communication
Dimensions: Housing 47mm x 110mm x 197mm
Bracket 35mm x 210mm x 159mm
Mounted 62mm x 210mm x 197 mm
Weight: 1.1kg (approx) including batteries.
What's in the Box:
(1) Valeport TideMaster Portable Water Level Recorder with Display
(1) Wall mounting bracket and electronics/logger
(4) "C" Cells Batteries
(1) Window based TideMaster Express software
(1) Switch cap
(1) Interface lead to PC,
(1) RS232/USB adaptor
(1) Operating manual
(1) System Transit Case.
