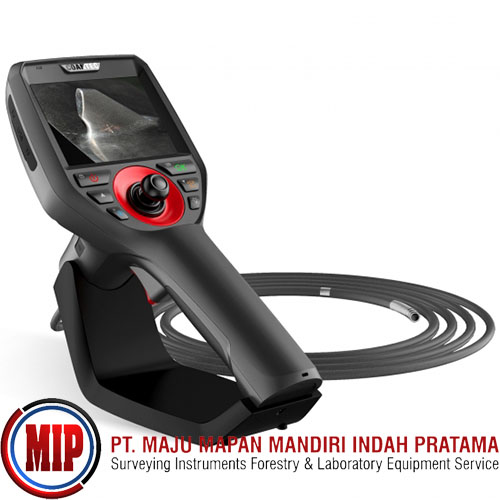

COANTEC C40 (6mm Cable Probe 2 Meter) Super HD Mega Pixel Industrial Videoscope

Borescope camera Coantec C40 with a probe resistant to liquids, greases and oils

Coantec C40 is a series of professional borescope cameras resistant to oils and liquids. Innovative solutions such as camera lens control in scope of 360° and 160°, wide viewing angle of 120 in combination with optional lens with the diameter of 2.8 - 6.0 mm enable operation even in the darkest corners.

Coantec C40 is a modern series of professional borescope cameras Coantec M3. A series of M4 technical endoscopes has been equipped with a 1000 px resolution camera with 8x image zooming. The probe of the borescope camera is waterproof and resistant to humidity and oil, and is used in searching fuel tanks, all kinds of plumbing installations and etc. Depending on the model the depth of field of the lens can be 3-30 mm/ 5-50 mm/ 10-100 mm/ 25-100 mm with the viewing angle of 70°/120°.



FEATURES

720P megapixel Ultra HD camera

Rapid replacement of insertion tube with different specifications within 20 seconds

2-6mm multiple diameter optional

Powerful software functions

LED light source lifetime warranty

Environmental adaptability, oil resistance and corrosion resistance



AVAILABLE LEGTHS

Technical endoscope Coantec C40 is available with the following diameters of probe: 2.8 mm, 3.8 mm and 6 mm. Maximum length for the diameters 2.8 and 3.8 mm is 2 m, while for other diameters is 7m.



Specification

Camera:

 Probe Diameter φ2.0mm / φ2.8mm / φ3.8mm / φ4.8mm / φ6.0mm

 Pixels φ2.0mm (160,000 pixels) / 2.8mm (160,000 pixels) /

 3.8mm (300,000 pixels) / 4.8mm、6mm (1 megapixels)

 Probe Material Titanium alloy protective shell

 Depth of Field 3-30mm / 5-50mm / 10-180mm

 Field of View 70° / 120° Optional

 Visible Direction Standard direct view lens

 (side view lens optional, except φ2.0mm/2.8mm)



System:

 Integrated Design Probe, Screen, Insert tube, Handle, Battery and other integrated

 handheld design

 Insert Tube Replace with different Insertion tubes/ Diameter/ Length/ Depth of

 field.

 Tube Length 1m - 7m (φ2.0mm/ 3.8mm Up to 3m)

 Probe Control Mechanical damping control

 Probe Articulation 360° all-way

 Bending Angle The minimum bending angle of the insertion tube in a straight

 state ≥160°

 Illumination Type Front LED light or Rear-mounted Fiber (LED light life ≥30,000 hours)

 Illuminance Front LED guiding with max 20,000lx, Rear-mounted fiber guiding

 with max 60,000lx (φ2.0mm Up to 8,000lx)

 Digital Zoom Support real-time 4x zoom, 8x partial zoom when playback

 Brightness Level Manual 7-level adjustment

 Negative Function Can be opened

 Cross Cursor Function Can be opened

 Display 3.5 inch TFT daylight display, visible under sunlight

 Image Resolution 1280*720/ 960*720（≥φ4.8mm）640*480（≤φ3.8mm）

 Video Resolution 1280*720（≥φ4.8mm）640*480（≤φ3.8mm）

 Shooting & Recording Function With camera and video function, can be captured during recording

 File Format Picture: BMP ; Video: MP4

 Image Flip 180°

 Image Preview List preview mode, full-screen view optional / time watermarking.

 Memory Standard 8G capacity TF card, maximum support 32G

 Equipment Durability Protection Device Buffer protection device for connecting host and insert tube

 Insert Tube Oil and corrosion resistant



Host:

 Host Weight ≤0.55kg

 Waterproof Host IP55, Probe IP67

 Output Port HDMI



Battery:

 Power 18650 rechargeable lithium battery,real-time online charging.

 Battery DC 4.2V

 System Operating Time ≥4 hours (1 battery)



Operation Environment:

 System Operating Temp -10 ~ 50°C

 Tip Operating Temp -20 ~ 60°C

 Storage Temperature -20 ~ 60°C

 Relative Humidity 15% ~ 90%



Accessories: C40 videoscope x1, instrument case x1, magnetic base x1, lithium battery x1, charger x1,  card reader x1, 8G TF card x1, anti-fall hand strap x1, user manualx1, precautions for use x1.
