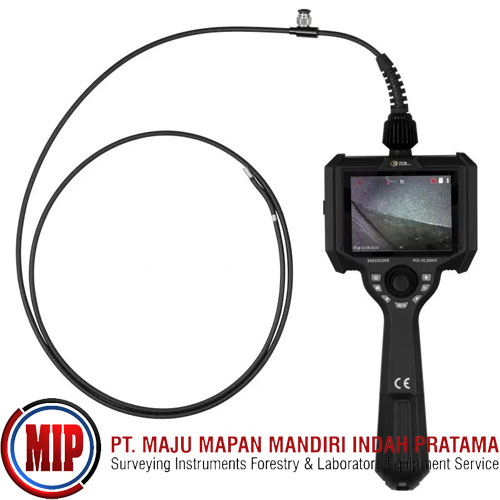

PCE VE260HT Dia 6mm Portable Industrial Borescope

The industrial borescope offers an advanced solution for visual inspection in extreme environments with temperatures of up to 300 °C. With a specially developed high-temperature camera cable, it enables reliable image and video recording even under extreme conditions. The integrated connection on the camera cable for air cooling ensures effective cooling during use.



The detachable Li-ion battery enables flexible and mobile use of the industrial borescope without having to rely on an external power source. The 4-way camera head enables comprehensive monitoring and inspection from different angles. For optimum illumination in dark environments, the industrial borescope is equipped with LED lighting via fibre optics, which ensures uniform and intensive illumination. HDMI image transmission enables high-resolution live transmission of the inspection image to external monitors or recording devices.



For recording and storing inspection data, the industrial borescope has a 32 GB micro SD card memory, which offers sufficient space for extensive recordings. An audio recording can also be added to a video via the AUX input. The device allows user-defined notes and file names to be assigned in the menu. With these powerful features, the industrial borescope is the ideal solution for demanding inspection applications in hot and extreme environments.



Highlights

- High-temperature camera cable up to 300 °C

- Connection for air cooling

- Removable Li-ion battery

- 4-way camera head

- Illumination via LED fibre optics

- HDMI image transmission

- 32 GB micro SD card memory



Specification

General technical data

Display type  LCD

Display size  5 inch

Storage medium  Micro SD card

Storage capacity  32 GB

Storage capacity (additional information)  max. 128 GB possible

Interface  HDMI, Micro-USB, AUX

Camera resolution  1280 x 720

Camera orientation  frontal 0°

Operating time  4 h

Length of camera probe  2 m

Material camera probe  Wolfram braided

Movement of camera probe  4-way

Camera probe protection class  IP67

Diameter of camera head  6 mm

Field of view  120 °

Field of view depth  12 ... 200 mm

Bending angle  220 °

Luminous intensity  40000 lx

Fibre optic guide, rear LED

Cable type  flexible

Image / video format  JPEG, AVI, mp4

Pressure connection  Quick connection, max. permissible air pressure 4 bar

Menu language  German, English, Chinese, French, Spanish, Italian, Polish, Japanese, Russian, Ukrainian, Dutch, Korean

Protection class (device)  IP54

Power supply  5 V DC

Plug type  Euro plug device

Weight  1018 g

Dimensions (L x W x H)  360 x 157 x 75 mm

Operating conditions  -10 ... 50 °C , 0 ... 90 % r.H

Storage conditions  -20 ... 60 °C , 0 ... 90 % r.H

Accumulator/battery  1x 3.7 V , lithium-ion battery

Capacity  3400 mAh



Delivery Scope

1 x industrial borescope PCE-VE 260HT

1 x 32 GB micro SD card

1 x USB card reader

1 x mini tripod

1 x approx. 40 cm hose

1 x HDMI cable

1 x case

1 x USB power adapter 5 V, 3 A

1 x Micro-USB cable

1 x instruction manual
