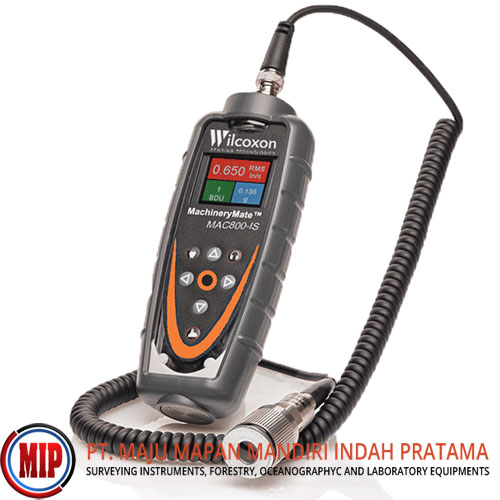

WILCOXON MAC800IS MachineryMate Handheld Vibration Meter

The Wilcoxon Sensing Technologies MAC800 series handheld vibration meter kit is designed to enable users to take vibration measurements from pumps, motors, fans, and bearings. The MAC800 displays overall vibration in velocity or displacement with 3 frequency bands based on running speed and 200/800 line spectrum. The kit supports up to ten machines at ten points each. The MAC800 comes with built-in band filters for unbalance, misalignment, and looseness, and its low frequency range allows readings on machinery running at speeds as slow as 120 RPM.

The optional MAC800-IS intrinsically safe model is IECEx/ATEX and SGS certified intrinsically safe for use in Class 1 Zone 1 hazardous locations and includes an intrinsically safe accelerometer with magnet.

Features
Frequency ranges:
ISO: 10Hz-1kHz (600-60,000CPM)
Low speed ISO: 2Hz-1kHz (120-60,000CPM)
BDU: 1Hz-10kHz (60-600,000CPM)
±60g input range
Sensor:
MAC800: 780FM-2-J88C integral cable accelerometer
MAC800-IS: 786A-IS intrinsically safe accelerometer
Sensor sensitivity tolerance:
MAC800: ±15%
MAC800-IS: ±5%
Sensor frequency range:
MAC800: 0.4 Hz to 12 kHz
MAC800-IS: 0.5 Hz to 14 kHz
Magnet:
MAC800: Two-pole 40 lbf, detachable
MAC800-IS: Two-pole 55 lbf, detachable
Built-in band filters
Optional strobe attachment for determining machine speed
IP67 rated

MAC800 kit:
MAC800 meter and DataMate software
USB docking station
Protective boot
100 mV/g sensor with magnet
Carrying case with insert

MAC810 kit:
All of the above MAC800 kit items
Strobelight attachment
DataMate PRO software

MAC820 kit:
All of the above MAC810 items
Bluetooth headphones
Headphones case

MAC800-IS kit:
MAC800-IS meter and DataMate software
786A-IS intrinsically safe accelerometer
R6WP-2-J88C-06 cable assembly
MD055 two-pole magnet
USB docking station
Protective boot
100 mV/g sensor with magnet
Carrying case with insert
