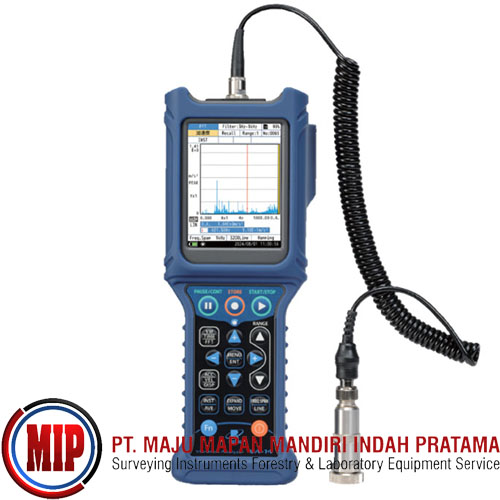

RION VA14 Portable Vibration Analyzers
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The new VA-14 is a handheld vibration analyzer that can perform 1-channel FFT analysis. Measurement functions include a vibration meter function, a time waveform function, and a frequency analysis function. Equipped with a USB port and a LAN port, it can be used as a stationary measuring instrument without direct operation on-site by connecting to an external communication device, or can be incorporated into a system.
Further enhanced vibration measurements are possible using two types of optional programs.
Features
Advanced 1-channel FFT analysis with simultaneous multi-parameter measurement
Remote operation capability through USB-C and LAN connectivity
Ergonomic single-handed operation with reduced weight.
Comprehensive measurement options including acceleration, velocity, displacement, and crest factor.
Intelligent spectrum analysis with TOP10 and PEAK10 features.
Flexible power options via USB-C .
Enhanced filter customization for precise measurements.
Full support for imperial units (G, inch/s, mils).
Applications
General vibration measurements for various industries, including product development and quality assurance, ideal for users requiring frequency analysis.
Equipment diagnostics to detect faults or irregularities in machinery and systems.
Condition monitoring for continuous assessment of machine health.
Use as a front-end device: When connected to a PC and dedicated software, it can be used not only as a handheld unit but also as a general-purpose input A/D board.
Sound measurements by connecting a microphone.
Supplied Accessories:
• Piezoelectric Accelerometer PV-57
• Curled Cable (Attached to the PV-571
• Magnet Attachment VP-53S
• PV-571 Calibration Chart
• Shoulder Strap
• Size AA Alkaline Battery
• Instruction Manual: Quick Start Guide (English)
• Instruction Manual: Quick Start Guide (Japanese)
• 512MB SD Card
• Document for China RoHS
• Supplied Accessories and Inspection Certificate
