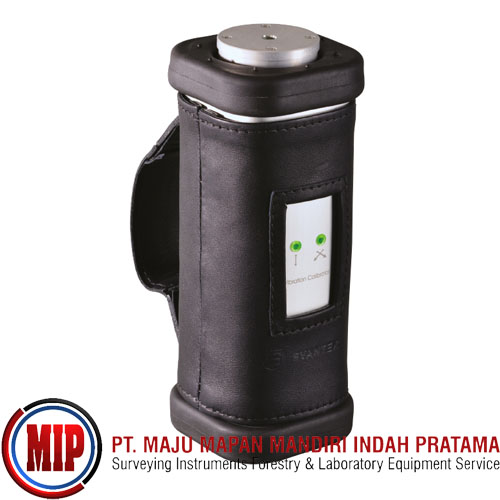

SVANTEK SV110 Hand-Arm Vibration Calibrator

The SV 110 is the perfect solution for calibration checks of hand-arm vibration meters. Following the requirements of ISO 8041, the calibrator’s built-in reference accelerometer measures the cross-axis (transverse) vibrations to detect any interference to the calibration signal.
Faults caused by transverse vibrations are indicated by two LEDS on the calibrator’s housing. This unique solution ensures stability of both the calibration level & frequency, independent from the mass of the test object.

The small size of the SV110 makes it very useful for calibration checks of various types of machine vibration accelerometers. Depending on the selected frequency, the user can select the level of the calibration from 1 m/s2 to 10 m/s2.
Accelerometers are conveniently attached using either a mounting stud, a mounting disc or a dedicated adapter. The calibrator has built-in rechargeable batteries that will power it for 12 hours of continuous operation.

Features:
Hand-held portable vibration calibrator
Two frequencies 79.58 Hz and 159.2 Hz
Maximum load of 0.3 kg!
Calibration checks of machine vibration accelerometers
In-situ checks of hand-arm vibration accelerometers according to ISO 8041
Cross-axis/transverse vibrations detection with built-in reference accelerometer
Automatic fault detection
Display showing frequency, magnitude and errors
Robust design
Rechargeable battery
