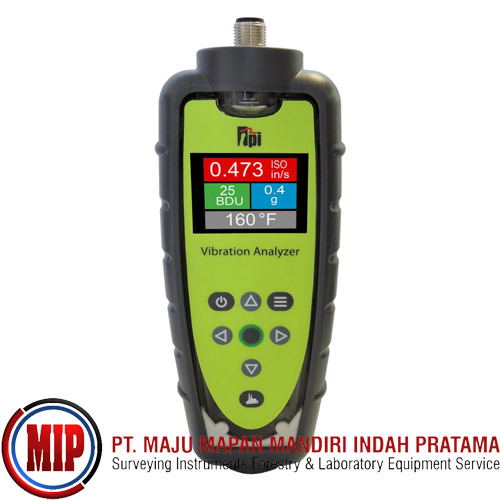

TPI 9085 Smart Trend Meter Vibration Analyzer

9085 Smart Trend Meter Vibration Analyzer
The TPI 9085 Is A Simple, Easy to Use, Low-Cost Vibration Meter That Records, Analyzes, and Displays Vibration Signals at The Push of A Button.

Vibtrend Software Gives You Greater Ease of Use and Flexibility
Store, analyze, and report on all your vibration parameters in one place
All information is just a click away. Color-coded alarms highlight problems. Trend lines show problems before they happen

TPI 9085 Smart Vibration Analyser Key Features;
Easy-to-use, economical vibration monitoring and analysis tool
Measure, record, and analyse vibration and bearing wear and temperature
Automatically performs vibration analysis functions based on the machine’s running speed
Diagnose unbalance, misalignment, and looseness
Determine the degree of bearing wear
Data is displayed in frequency plots
Monitor, analyse, and trend vibration severity and bearing condition using the supplied C-Trend II Software
800-line spectrum with zoom and a cursor
Colour-coded ISO alarms
Alarms are displayed alongside vibration values and Bearing Damage Units (BDU)
Find faults before they become failings that stop your machine
Decrease maintenance costs
Increase productivity
Determine if bearings require lubrication
Confirm whether a high BDU is the result of a worn bearing, pump cavitation, or nearby noisy bearing
Diagnose tight/loose housing or shaft fit on a bearing
Identify electrical issues such as winding insulation deterioration, single phasing, and broken rotor bars
A powerful, simple-to-use, cost-effective vibration monitoring and analysis tool

What’s Included;
TPI 9085 Smart Vibration Analyser
TPI C-Trend II Software
TPI A9101 Low Power Accelerometer with A9105 Cable and Magnet
TPI A9081A Docking Station with USB Cable
TPI A9086 Protective Boot with Magnets
Carrying Case
