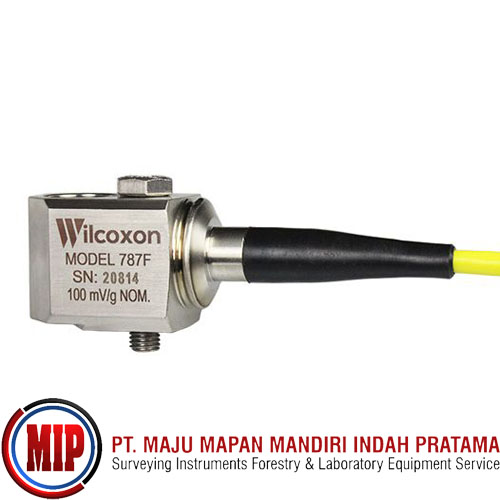

WILCOXON 787F Integral Cable Accelerometer

Rp. 15,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Model 787F Integral cable accelerometer

Side exit, general purpose, 16' J9T2A integral cable, case isolated, 100 mV/g, ±5% sensitivity tolerance, 100 psi pressure rating

Features

Corrosion resistant

Hermetic design

100 psi pressure rating

ESD, EMI/RFI and reverse wiring protection

Included accessories

1/4-28 captive hex head screw

PARAMETER VALUE

Sensor output Dynamic vibration (IEPE)

Sensitivity 100 mV/g

Sensitivity tolerance ±5 %

Frequency response 0.5 Hz - 10,000 Hz

Mounting Thread 1/4-28 captive hex head screw with 0.046" diameter safety wire hole

Connector style Integral cable

Connector orientation Top exit

Full-scale range 80 g peak

Resonance frequency 22 kHz

Temperature range -50°C to +120°C

Weight 145 grams

Hazardous area approvals Non-approved
