WILCOXON 712F High Frequency Sensor with Integral Cable

Rp. 38,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

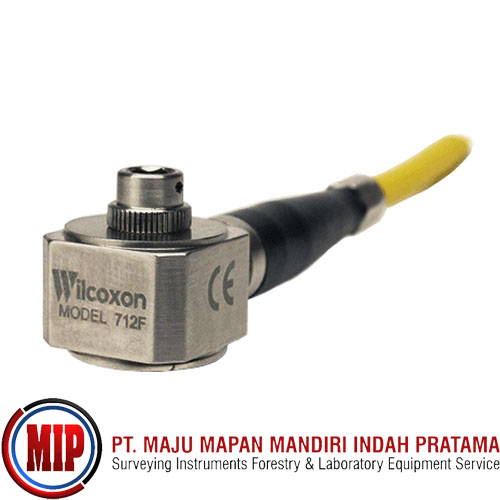

Model 712F High frequency sensor with integral cable

Side exit, high frequency, 16' J9T2A integral cable, case isolated, 100 mV/g, 8-32 mounting thread

Features

Corrosion resistant

Hermetic seal

Ground isolated

Reverse wiring protection

ESD protection

PARAMETER VALUE

Sensor output Dynamic vibration (IEPE)

Sensitivity 100 mV/g

Sensitivity tolerance ±10 %

Frequency response 3 Hz - 25,000 Hz

Mounting Thread 8-32 captive screw with 0.047" diameter safety wire hole

Connector style Integral cable

Connector orientation Side exit

Full-scale range 60 g peak

Resonance frequency 45 kHz

Temperature range -50°C to +120°C

Weight 35 grams

Hazardous area approvals Non-approved
