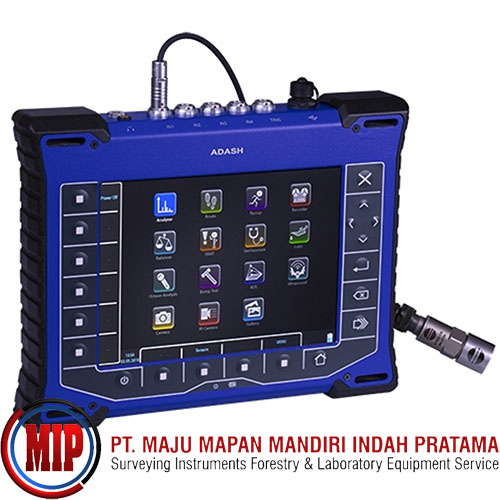

ADASH VA5 Pro Vibration Analyzer and Data Collector
Rp. 650,000,000
NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
VA5 Pro Package - This package includes the A4500 VA5 Vibration Analyzer and Single License of DDS Digital Diagnostics Software 2019 Software, charger, leather holster, carrying strap and hard shell Profi Case, one standard sensor, one 6ft. coiled cable, flat rare earth magnet. Order additional software modules, cables and accessories as needed.
Featrues:
Vibration analyzer
Balancer
RAW signal recorder
Thermal imaging camera
Machine faults autodetection
Route data collector
Sound analyzer
Operating Deflection Shapes
Ultrasound detector
Run Up - Coast down
Lubrication monitoring
Stethoscope
Manufacturer Specs
Input channels 4 x AC, ICPŽ power supply on/off
4 x DC for process values
1 x TACHO for speed probe/external trigger
Input range AC +/- 12 V peak-peak
DC +/- 24V
AD conversion 24 bit, 64 bit internal signal processing
No AutoGain function!
Dynamic range S/N 120 dB
Frequency ranges (-3 dB) Maximum range: 0.35 Hz - 90 kHz (1 Ch, 194 kHz sampling)
Maximum range: 0.35 Hz - 25 kHz (4 Ch, 64 kHz sampling)
Minimum range: 0.35 Hz - 25 Hz (4 Ch, 64 Hz sampling)
Sampling mode Fully simultaneous for 4 channels
FFT resolution Min. 100 lines
Max. 3 276 800 lines
Unit modes Analyzer - analytical measurements
Data collector - route measurements
Balancer - 1 and 2 plane on site balancing
Run up - run up and coast down measurements
Recorder - raw signal recording for later post analysis
Stethoscope - listening of the bearing/machine noise
FASIT - expert system for automatic fault detection
Octave analyzer - hearable sound measurements
Bump test - measurement of natural frequencies
ADS - Animated Deflection Shapes (Operating deflection shapes)
Ultrasound - measurement of ultrasound in 30 - 50 kHz range
Camera
IR Camera
Gallery
Display 1125 x 800 pixels
Built-in camera 5 MPx, autofocus
Thermal imaging camera (optionally) 384 x 288 pixels
-10°C ~ 250°C temp. range
50 mK NETD sensitivity
Processor Intel Atom 1.9 GHz
Memory, Route 64 GB, max. 16 GB for one route, number
of routes is limited by free memory only
Data processing Real time FFT
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
Order analysis
User band pass analysis
RPM measurement
DC measurement
Orbit measurement
Raw signal recorder 64 kHz sampling frequency
4 Ch memory consumption 3 GB/hour
4 Ch total recording - 20 hours
Trigger Manual, External, Signal level, Time
Speed change, Time interval
Interface USB 3.0, 2.0 compatible
Operating temperature range 10˚C to +50˚C
Power Battery 8 hours of operation, AC 230 V
Case Aluminium heavy duty
Size & Weight 29,5 x 23 x 4,9 cm, 2 Kg
In The Box
VA5 Vibration Analyzer
Single License of DDS Digital Diagnostics Software 2019 Software
Charger
Leather holster
Carrying strap and hard shell Profi Case
1x standard sensor
1x 6ft. coiled cable
Flat rare earth magnet
