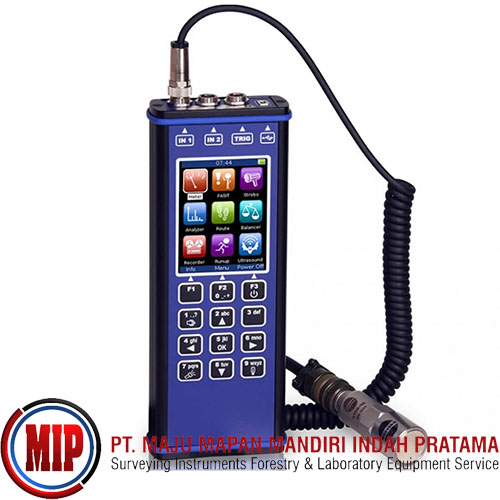

ADASH A4300 VA3 Pro Vibration Analyzer and Data Collector
Rp. 285,000,000
NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The A4300 VA3 Pro is the newest addition to our range of portable devices for vibration diagnostics. There are 2 signal inputs and 1 tacho/trigger input. Input 2 offers connectivity to a triaxial sensor, therefore all 3 channels can be measured simultaneously. The expert system developed by Adash can automatically detect machine faults such as unbalance, looseness, misalignment, and bearing faults.
There is a non-contact IR temperature sensor (for immediate bearing temperature measurement) and a LED stroboscope/torch. The A4300 VA3 Pro is designed for one-handed operation. With a weight of just 780g and a battery life of more than 10 hours of operation, the unit is suitable for long route measurements.
The A4300 VA3 Pro instrument can be configured according to your requirements by choosing optional modules: analyzer, route, balancer, recorder, run up, or ultrasound.
Manufacturer Specs
Adash America A4300 Specifications
Input channels 3 AC, ICP® power supply on/off
3 DC for process values
1 TACHO for external trigger
Input range AC +/- 12 V peak-peak
DC +/- 24V
AD conversion: 24 bit, 64 bit internal signal processing
No AutoGain function!
Dynamic range S/N: 120 dB
Frequency ranges Maximum range: 1 Hz - 25 kHz (64 kHz sampling)
Minimum range: 1 Hz - 25 Hz (64 Hz sampling)
Sampling mode Fully simultaneous for 3 channels
FFT resolution Min. 25 lines
Max. 25 600 lines
Unit modes Analyzer - analytic measurement
Data collector - route measurement
Balancer
Recorder
Run Up
Ultrasound
LED stroboscope, LED torch
FASIT - Expert system for fault detection
Vibration meter
Data processing Real time FFT
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
Order analysis
User band pass analysis
RPM measurement
DC measurement
Orbit measurement
IR temperature measurement Range -70°C to +380°C -(94°F to +716°F)
Trigger Manual, External, Amplitude, Tacho
Display Colour 240 x 320 pixels, TFT
Communication USB
Operating temperature range -10°C to +50°C
Power Battery 10 hours of operation, AC 230 V
Case Aluminium heavy duty
Weight 780 g
Dimensions 230 x 82 x 32 mm
In The Box
A4300 VA3 Vibration Meter
Charger
Leather holster
Carrying strap
Hard shell Profi Case
One standard sensor
One 6ft. coiled cable
Flat rare earth magnet
Order additional software modules, cables and accessories as needed
