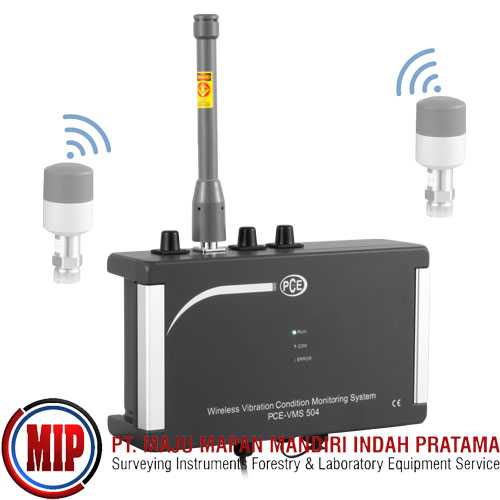

PCE VMS 504 Wireless Condition Vibration Monitoring

Rp. 255,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The wireless PCE-VMS 504 Vibration Meter detects vibration within an acceleration range of up to 30 g and a frequency range between 5 and 10 KHz. The wireless Vibration Meter features external vibration sensors which measure vibrations on machines and transfer those measurements wirelessly to a receiving unit. The sensors can be easily attached to a machine due to their magnetic base. Not only do the sensors measure vibrations and transfer the measurements to a computer, but the sensors also recognize temperatures between -20 °C and +120 °C. While operating, the communicating server of the PCE-VMS 504 Vibration Meter sends the measured parameters straight to a receiving unit, which then uploads the received data straight to a server. If the system cannot establish a connection with the server, the measurements are temporarily saved on the receiving unit until a server-connection could be re-established. A main advantage of the wireless Vibration Meter is that there are no wires, so that the set-up of the system is very quick and easy, and the wireless Vibration Meter is able to record vibrations over a longer period of time.

- Wireless communication via ZigBee

- Frequency range between 5 Hz and 10 kHz

- Wireless transferring Piezo sensors

- Large radius of coverage

- Can be extended at any time

- Dispatcher IP 65 protected

- Temperature measurement up to 120 °C

- Data memory (receiving base) 128 MB

- Long battery lifetime

- No extensive wiring required

Technical Specifications

Communication type ZigBee (with PCE-VMS 501)

ethernet, glass fibre cable, wireless (with server)

Frequency band 2.4 GHz

Interfaces Ethernet 2.0 IEEE802.3, TCP/IP, 10/100baseT

Data storage capacity 128 MB

Power supply 220 VAC/110 VAC or POE

Operating temperature -20 °C ... +50 °C

-4 °F ... 122 °F

Dimensions 250 mm x 210 mm x 100 mm

9.8 in x 8.3 in x 3.9 in

Weight 2400 g / 5.3 lbs

Technical Specifications about dispatcher

Dispatch range max. 100 m / 328 ft in industrial environment

(130 m / 426.5 ft in free field)

Acceleration range up to 300 m/s²

Frequency range 5 Hz ... 10 kHz

Resonance frequency 16 kHz

Linearity 1 %

Sensitivity for parameters that are not relevant for measurement ≤5 %

Electric insulation <108 Ω

Load limit 1000 g / 2.2 lbs

Measuring parameters Acceleration, speed, temperature, offset

Dispatch interval min. 1 minute per sensor

1 sensor at 1 box = 1 minute

3 sensors at one box= 3 minutes

A/D conversion 24 Bit

Measurable range for wave form max. 512 kB

Frequency lines 800, 1600, 3200, 6400

Measurement range for temperature -20 ... +120 °C

-4 °F ... 248 °F

Screw thread 6 mm

Material of enclosure Bottom 316 L stainless steel,

top aluminum alloy

Power supply 1 x 3,6 V lithium battery (ER 34335)

Battery lifetime 1 year, depending on transfer interval

Dimensions height: 80 mm / 3.1 in

diameter: 40 mm / 1.6 in

Weight 217 g / 0.5 lbs

Protection class IP 65

Operation temperature -30 °C ... +70 °C / 86 °F ... 158 °F

(Surface temperature up to 125 °C / 257 °F)

Include;

Delivery Contents:

1 x Wireless Vibration Meter PCE-VMS 504 receiver base

1 x Monitoring-Software

1 x Adapter (1.5 m)

1 x Adapter cable (1.5 m)

4 x Screws to attach to wall

1 x Instruction manual
