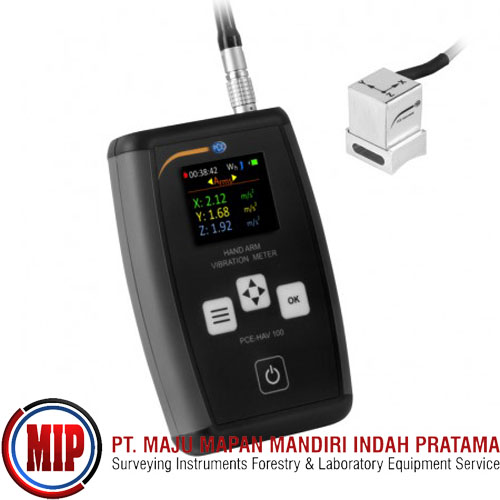

PCE HAV 100 Condition Monitoring Vibration Meter

Rp. 85,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

The accelerometer is a versatile vibration meter. The main feature of the accelerometer is the human vibration exposure assessment according to the ISO standards ISO 8041: 2005 and ISO 5349: 2001. Thus vibrations of tools of, for example, a jackhammer, impact drills, grinding machines or jigsaws can be determined and analyzed with the accelerometer .

The battery of the accelerometer has a running time of approx. 10 hours. Also, the accelerometer has a memory. Due to the long running time of the battery and the memory, measurements can be carried out with the accelerometer over a working day. The measured values stored by the accelerometer can be transferred to a PC after the measuring process. The PC software then allows analysis of the data measured by the accelerometer .

- Hand-Arm vibration analysis

- Easy-to-use interface

- 10 hours of battery life

- General vibration measurement

- Hand-arm accelerometer included

- Data memory for later evaluations

Measuring range Low: 0.05 ... 200.0 m/s² / 0.005 ... 20.4 g

High: 0.50 ... 2000.0 m/s² / 0.05 ... 204.0 g

Measuring channels 1

Measurement parameters Acceleration: Arms, Aeq, Amay, Peak,

Vector Sum, HSE Exposure Points, EAV, ELV

Linear operating range 72 dB

Frequency weighting Hand Arm Filter

Background noise <0.002 m/s² - Low Range

<0.020 m/s² - High Range

Memory 992 readings

Vibration sensor ACM-PCE-HAV 100, 10 mV/g

Display OLED 160 x 128 pixels

Power supply (battery) 2.4 V, 4 Ah NiMH

Battery life about 10 hours of continuous operation

Power supply (power adapter) Primary: 100 ... 240 V AC, 50/60 Hz, 0.35 A

Secondary: 6.4 V DC, 1.3 A

Interface 3.5 mm Stereo jack,

AC output: 4 Pin 3.5 mm jack,

Micro USB, mains connection

Menu languages German, English (US), English (UK), Chinese,

French, Italian, Portuguese, Russian, Spanish

Operating conditions -10 ... 50 °C / 14 ... 122 °F, <90% r.H. not condensing

Housing ABS, keypad

Weight ca. 280 g / 9.8 oz

Standards ISO 8041: 2005

ISO 5349: 2001

Include:

1 x Accelerometer PCE-HAV 100

1 x Micro-USB cable

1 x Power supply with adapter

1 x USB stick

1 x Carrying case

1 x Factory certificate

1 x Operating Instructions (Quick Start Guide)
