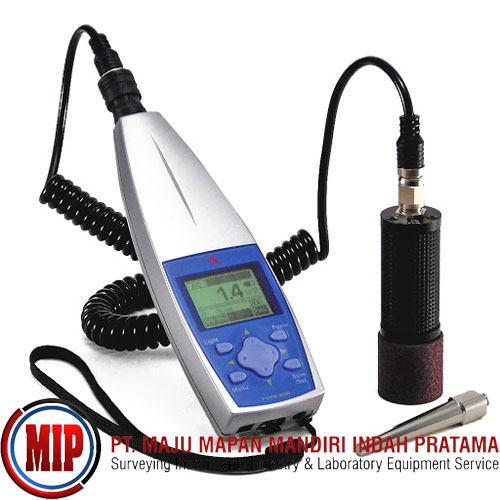

ACO 3116 Compact Size Portable Vibration Meter

Rp. 58,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

ACO make Vibration Meter, Model : 3116 / 3116A

Vibration Meter " ACO Vibro Type 3116 is super mini size like a cellular phone. it offers just like a machinery doctor, high precision monitoring of various industrial machinery by using the optional headphone or auscultation stick. It offers a simple way of making medical chart for your machine. The data hold funtion has highly promoted the easy observation of the numerical data. In addition, maintenance of examination of the existing machine or experiment for a new facility under development, has been greatly promoted by fixing and numbering the measuring points on a large scale target machinery or by improving the mobility of the measurement based on the single point scheme stated above.

Measurement range: Acceleration (ACC)/0.02 - 200m/s^2 RMS, Velocity (VEL)/0.02 - 200mm/s RMS, Displacement (DISP)/2 - 2000μm EQ p-p
Frequency range: Acceleration (ACC)/3Hz - 10kHz, Velocity (VEL)/10Hz - 1kHz (JIS B0907-1989 compliance), Displacement (DISP): 10Hz - 400Hz
Digital display: Numerical value display, 4 digits
Size: Body/48 x 23.5 x 145mm
Data memory: Maximum 256 pieces
Accuracy: +/- 5%
Power supply: AAA dry cell x 2 pieces or AC adapter , Time of continuous use with battery is approximately 12 hours
Body and sensor (built-in pre-amplifier type)
Pickup temperature range (℃): -10 to +60
