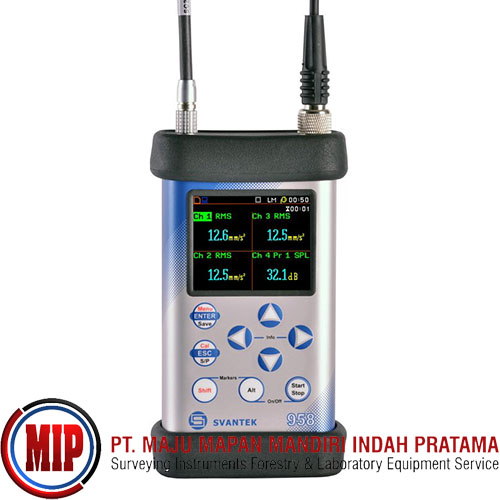

SVANTEK SVAN 958A Four Channels Sound & Vibration Analyzer

This is the Svan 958A Class 1 Four-Channel Sound and Vibration analyser which is dedicated for all applications that require simultaneous class 1 sound and vibration assessment. Each of the four input channels can be independently configured for sound or vibration detection with different filters and RMS detector time constants which gives users an enormous measurement flexibility.

A real advantage of this instrument is the capability to perform advanced analysis simultaneously to the level meter mode. This allows the user to obtain broadband results such as Leq, RMS, LMax, LMin, LPeak together with four-channel analysis like FFT or octave band analysis.
Available analyser functions include FFT, 1/1 or 1/3 octave, cross spectra, sound intensity, RT60 and more.

There is 4-channel time-domain signal recording to .wav format as well as an exceptional feature. All of the measurement results are stored in a non-volatile 32 MB internal memory or a USB memory stick and they can be easily downloaded to a PC with SvanPC++ software. It can be offered with GPRS modem or LAN and WLAN connection module.

These interfaces provide easy remote access to instrument settings and data over Internet and local area network together with SvanPC++ RC remote communication software. It is powered from four AA standard or rechargeable batteries as well as from the external DC power source or USB interface. There is a robust case and lightweight design which accomplish the exceptional features of this new generation instrument.

Features:
Four channels sound or vibration configurable
Human Vibration measurements meeting ISO 8041:2005 including VDV and MTVV
Sound level meter Class 1, IEC 61672
Advanced data logger including spectral analysis
USB memory stick providing almost unlimited logging capability
Advanced trigger and alarm functions
USB 1.1 Client and USB Host interfaces
RS 232 for modems support (GPRS, Ethernet, WLAN)
Powered by four AA standard or rechargeable batteries
Easy in use, hand held, light weight and robust

Analyser Options:
FFT analysis up to 1600 lines in 20 kHz band
1/1 and 1/3 octave real-time analysis
Time-domain signal recording
Sound intensity
FFT cross spectra
RT 60 reverberation time
Acoustic dose meter
Human Vibration measurements

Applications:
Sound measurements
Environmental noise
Building acoustic
Infrasound
High level/low level noise
Hand-arm vibration
Whole-body vibration
Machine vibration
Building/ground vibration

The standard kit includes SVAN 958A 4-channel sound & vibration level meter with an USB cable, set of 4x AA batteries, SC 61 TNC/BNC adapter and the user manual on a CD disk. Each SVAN 958A has its factory calibration certificate. The standard kit also includes license for PC software.
