SVANTEK SV258 PRO Vibration & Noise Monitoring Station

The new SV 258 PRO is dedicated for building vibration measurement that use methods based on Peak Particle Velocity and Dominant Frequency. The measurement of human vibration in buildings is possible as the program allows simultaneous measurement of velocity and acceleration of vibrations with two independent steps of recording. In addition, it is possible to enrich the measurement with Class 1 sound results.



Users can use predefined settings compatible with commonly used standards such as DIN 4150-3 or BS 7385-2 or configure a criterion curve based on FFT or 1/3 Octave analysis in accordance with local standards.



The vibration time history in the form of WAV is stored for all three channels and is used for verification of vibration sources. Accurate post-analysis of the frequency content of the signal is available in the SvanPC ++ program.



The built-in GSM modem transmits measurement data to the SvanNET server where the user has access to current data, files with historical data and can also generate a measurement report. The system generates SMS and Email notifications as well as visual and audible alarms (optional alarm lamp). In addition to simple triggers from PPV or LEQ values, the you can configure alarms from standard curves (e.g. DIN 4150-3) or custom curves based on FFT or 1/3 octaves. It is possible to move the criterion curve up or down the scale so that the alarm is generated earlier or later. The time and value of the alarm are saved together to the memory of the meter.

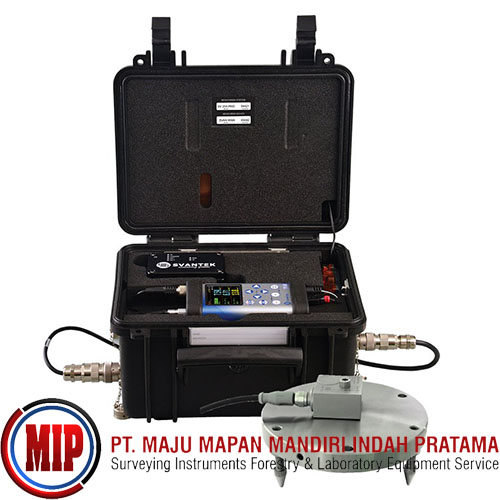

SV  258  PRO is an outdoor monitoring system based on SVAN   958A Class 1 sound level meter. The portable and battery powered station can be used for a variety of monitoring applications including construction site monitoring, tunnelling and blasting. The IP 65-rated case contains a lead-acid battery which operating time can be easily extended by connecting an external battery or small solar panel. The intelligent charging unit enables use of a solar panel without expensive controllers and heavy batteries.



The case is fitted with very robust, waterproof connectors (military standard) and comes with an IP 65 external power supply. The system uses a low-noise, hermetically sealed tri-axial piezoelectric accelerometer enabling the outdoor use without additional enclosures. The accelerometers’ signal ground is insulated from the mounting surface and outer case to prevent ground loops. All accessories fit conveniently into a second carrying case.



Features

Peak Particle Velocity (PPV) and Vibration Dose Value (VDV) measured simultaneously

Meets DIN 4150-3 and BS 7385-2

User curves in FFT and 1/3 Octave bands

1/3 Octave PEAK, RMS or MAX analysis

WAV recording

On-line access

Tri-axial measurement of vibration plus class 1 noise

Human vibration in buildings in accordance to ISO 2631-1, BS 6472 and DIN 4150-2.

Portable monitoring system

Waterproof case

SMS and E-MAIL alarms

Internal battery or external DC power supply

Ready for direct connection of solar panel

Waterproof charger

Robust and waterproof cable connections



Technical Specs

SVAN 958AG VIBRATION AND NOISE LEVEL METER & ANALYSER

Vibration Standards DIN 4150-3, DIN 4150-2, BS 7385-2, 22/09/1994, 23/07/1986, IN-1226, USER FFT, USER 1/3 OCTAVE

Noise Standards Class 1: IEC 61672-1:2002

Vibration Level Meter Mode PPV, DF, RMS, VDV, MAX, Peak, Peak-Peak, Vector, aw, awv

Sound Level Meter Mode SPL, Leq, SEL, Lden, Ltm3, Ltm5, Statistics – Ln (L1-L99), LMax, LMin, LPeak

Vibration Profiles Per Channel 2: velocity and accleration

Vibration Analyser 1/3 octave real-time analysis or FFT analysis

Time domain signal recording to WAV format

Filters In Velocity Profile DIN 80, DIN 315, VEL1

Filters In Acceleration Profile HP1, HP3, HP10, Wk, Wd, Wc, Wj, Wm, Wg, Wb

RMS & RMQ Detectors Digital true RMS & RMQ detectors with Peak detection, resolution 0.1 dB

Detector Time Constants Fast 125ms in accordance to DIN 4150-2

Accelerometer SV 84 triaxial high sensitivity (1 V/g),

noise floor RMS: 14 μm/s (VEL1), 2 μm/s (VEL3)

Vibration Measurement Range SV 84: 0.0005 ms2 RMS ÷ 50 ms-2 PEAK (accelerometer dependent)

Vibration Frequency Range SV 84: 0.2 Hz ÷ 315 Hz (accelerometer dependent) period

Ingress Protection Rating IP 65

Communication Interfaces USB, 3G modem

Power supply DC power supply / charger 11 V ÷ 30 V (waterproof)

Operation time on battery 17 Ah / 12 V

Modem on up to 3 days

Modem off up to 7 days

Solar Panel (not included) MPPT voltage 17.0 V ÷ 20.0 V

External DC source (not included) voltage range 10.5 V – 24 V

Environmental Conditions Temperature from -10oC to 50 oC

Dimensions 420 x 340 x 210 mm

Weight Approx. 9 kg with batteries

The SV 258 kit includes:
SM 258 Pro Outdoor monitoring station for SVAN 958A including 17Ah battery, SP 270 3G modem
SB 270 waterproof power supply
SC 278 Cable for SV 207B (SV 84) and SV 258
SV 207B Building vibration accelerometer and mounting adapter
SA 251 Carying case for accelerometer and accessories
SvanNet Web interface and connectivity support
