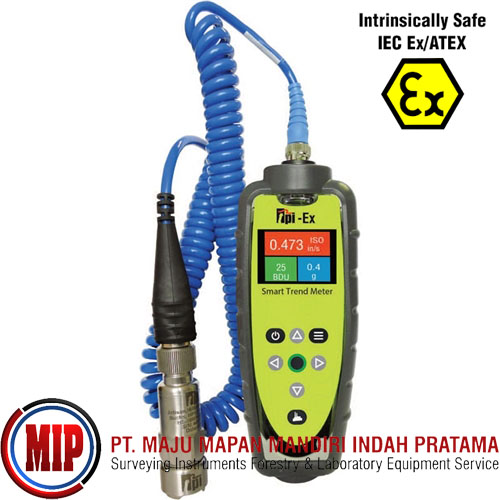

TPI 9080-EX Intrinsically Safe Portable Vibration Meter

The Vib Meter 9080-Ex and VibTrend is the latest easy to use high specification maintenance tool offering high level functionality and capability at extremely low cost.
The 9080-Ex Intrinsically Safe Vibration Analyzer & Smart Trend Meter is a simple to use vibration monitoring and analysis tool that allows easy display of vibration signals. The analyzer automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment and looseness.

The system is designed to enable a user to take vibration measurements from assets (e.g. pumps, motors, fans and bearings) . The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored.
The 9080-Ex Vibration Analyzer & Smart Trend Meter also has an optional strobe attachment for determining machine speed and optional Bluetooth connected headphones for listening to bearing noise.

Model 9080-Ex Features:
Collect data
Trend data using VibTrend software
Intrinsically Safe cable mounted accelerometer with magnet
Built-in Bluetooth communication capability
USB docking station to download to a PC
ISO built-in Alarms
Easily identify bearing problems with BDU Reading
Easily identify problems with built-in band filters:
1X (unbalance)
2X (misalignment)
3X (looseness)
800 line FFT (spectrum)
Listen to bearing noise with optional Bluetooth headphones
Ruggedized IP67 case
1-year Limited Warranty

Put the TPI 9080-Ex To Work!
Commercial & Industrial HVAC
Food Processing
Manufacturing
Mining
Packaging
Petrochemical
Pulp and Paper
Power Plants
Utilities
Automotive

Complette Package:
A9093 intrinsically safe accelerometer with cable and A9073 magnet
A9081 docking station with USB cable
A9083 VibTrend Standard sofrware and carrying case

Optional Accessories:
A9082 Strobe/Flashlight
A9084 VibTrend software Pro version
A9080 Bluetooth headset
A9072 4-inch stinger
A9086 Protective boot with magnets
