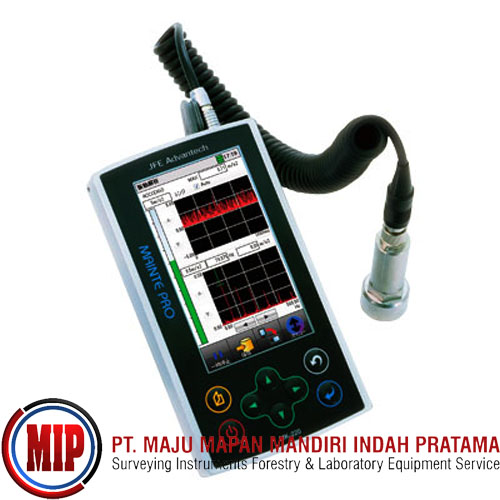

JFE ADVANTECH MK-220 Machine Diagnoser and Vibration Analyzer

Bearing diagnosis

Inner ring damage, Outer ring damage, Rolling elements damage, Retainer damage

Gear diagnosis

Chipped teeth, Axial center deviation, Teeth wear, Tooth profile form error, Local defect

Mechanism diagnosis

Unbalance, Misalignment, Shaft bending, Insufficient frame stiffness, Looseness, Wear of shaft, Inappropriate installation

Pump, Fan / Blower diagnosis

Pressure pulsation, Equable wear, Uneven wear, Local defect of the impeller

Motor diagnosis

High Frequency Vibration, Unbalanced power supply



Specifications

Vibration measuring part specifications

Input signal Vibration pickup signal 1 channel

Measurement mode

Measuring frequency range

(Default)

Measuring range

Measuring mode Measuring frequency range

(default ) Measuring range

Acceleration(TH,OA) 5 to 20kHz 500 m/s20-P

(1m/s2≒0.1G) *1

Acceleration(OA) 1k to 20kHz

Acceleration(PEAK) 1k to 20kHz

Acceleration(ENV) 1k to 20kHz

Velocity 5 to 1kHz 500 mm/s0-P *1

Displacement 5 to 1kHz 5000 μmP-P

Frequency filter Measuring mode HPF LPF

Acceleration(TH,OA) 5,10,15,20,100,200,

500,1k,2k,5k,10k,15k,

20kHz 1k,2k,5k,10k,15k,

20kHz

Acceleration(OA)

Acceleration(PEAK)

Acceleration(ENV)

Velocity 5,10,15,20,100,200,

500,1kHz 100,200,250,500,

1k,2kHz

Displacement 100,200,250,500,

1kHz

Dynamic range 88dB and over

Analyzing frequency range 10,20,50,100,200,500,1k,2k,5k,10k,20kHz(F.S.)

Window function Rectangular, Hamming, Hanning, Flat top

Resolution 1/100, 1/200, 1/400, 1/800, 1/1600, 1/3200, 1/6400, 1/12800 of analyzing frequency range



General specifications

Display TFT color LCD with backlight

External memory 1GB SD card

Main power supply Lithium ion rechargeable battery

Continuous working time 2 hours or more with 1 battery, 5 hours or more with 2 batteries

Recharging time Within 15 hours *3 hours with genuine fast charger

Protection structure of main unit Water / dust proofness IP67

Operating temperature 0 to 50°C (With maximum moisture amount at 85RH in 40°C circumstance, No condensation)

Storage temperature -10 to 60°C (With maximum moisture amount at 85RH in 40°C circumstance, No condensation)

Dimensions 85(W)×30(D)×155(H)mm

Mass Approx.380g (with 2 rechargeable batteries)
