SVANTEK SV106D Human Vibration Meter
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

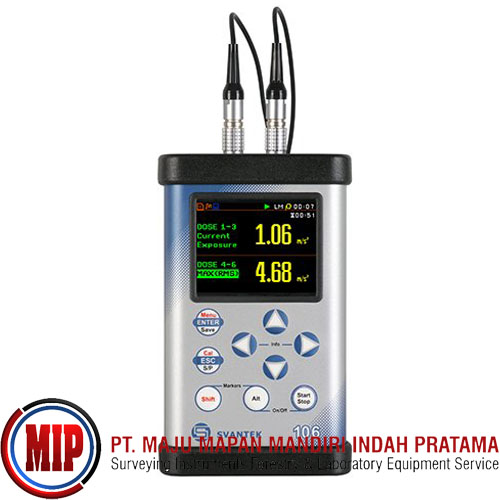

SV106D Human Vibration Meter and Analyser
Human vibration measurement has never been easier with this hand arm and whole body system. Along with the SV106 six channel human vibration meter and analyser this measurement system can simultaneously measure vibration levels for both hands or tri-axial SEAT transmission.
Using the computational power of a digital signal processor the SV106 can measure real-time single and third octave levels along with the required vibration measurements for ISO 2631 and ISO 5349, including RMS, Peak, Peak to Peak, VDV, MTV, A(8) and Dose, with all required weighting filters and band limiting filters for HVM measurements.
Built in 16MB non-volatile memory and additional slot for an external Micro SD card (kit is supplied with a 4GB card) can record data for time history logging and time domain signal recording. Results and data can then be easily downloaded to a PC for for analysis. The PC software can even be used to set up the vibration meter prior to use.
Using the SV38V vibration seat pad makes whole-body vibration measurements easier and can be placed directly on a seat cushion, a floor or fixed to the back of the seat.
The SV105 tri-axial accelerometers enable easy measurement of hand-arm vibration regardless of the tool being used. The alternative SV150D triaxial accelerometer is designed for easy direct attachment to tools and equipment being measured.
The six channel dual input meter allows for 2 x SV105 or SV150D tri-axial accelerometers to be used to measure both hands simultaneously. Using a combination of 1 x SV150D accelerometer and 1 x SV38V seat pad accelerometer is also possible providing simultaneous Hand-arm and Whole Body measurements.
SV106 Features:
Tri-Axial vibration system and analyser with optional whole-body vibration
Measures vibration levels meeting ISO 8041:2005, ISO 2631-1,2 & 5 (including VDV and MTVV) and ISO 5349
Dual input with 2 profiles with each channel
Micro SD card for mass data storage
Easy to use interface with colour display
This Kit Includes:
1x SV106D 6 channel human vibration meter
Choice of accelerometers from drop down boxes
1x microSD card 4Gb
1x PC Software for data viewing and analysis
