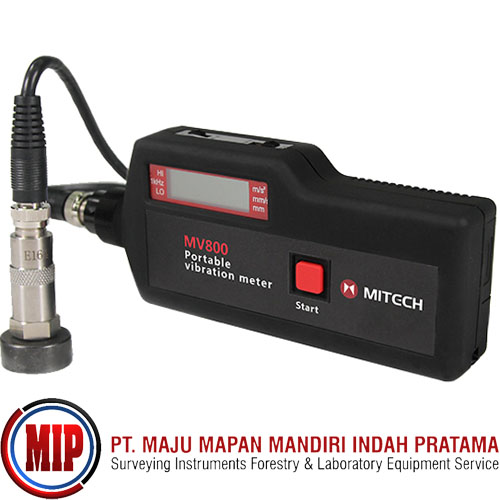

MITECH MV800 Portable Vibration Meter

MITECH portable vibration meter MV800 is made up of piezoelectric transducer and digital display circuit.

This product has the advantages of large measurement, wide variety, intuitively demonstration, small size, light weight etc.



Instrument Features

Separate design, small size, stable performance low-consumption,attractive appearance.

Liquid crystal display, humanized interface, easy to operate.

Apply to harsh environment, with anti-electromagnetic interference ability, high accuracy.

High frequency and low frequency measurement, easy to judge fault type of machine.

Equip reliable ring accelerometer, superior than compression type sensor.

Auto sleep and auto power off.

Signal output, equips with earphone can realize the function of stethoscope.

Signal output equips with oscillometer to monitor and record the vibration.



Operating Method and Attentions

Match the sensor with the number, if the sensor is not matched with tester, you can deliver it to our company.

When using different probes, the results might be different(especially in high frequency)

Do not use pincers to avoid damage.

Theoretically, MV800 can test acceleration of 199.9m/s, while in reality the collision of probe make the test range lower than199.9m/s2, usually the limit of acceleration is 50m/s2.



Portable Vibration Meter MITECH MV 800

Battery life continuous use for 30 hours

Power model 6F22 9v packed cells

Dimensions 185mm*68mm*30mm

Output signal AC 2v(peak value, full measurement above 10k)

Sampling period 1s

Display mode 3-digit Semi liquid crystal display

Frequency range 10Hz~10KHz

Indication error ±2

Measurement accuracy ±5% measured value

Measurement range(acceleration) 0.1~199.9m/s2(peak value: valid value*√2)

Measurement range(speed) 0.1~19939mm/s (valid value)

Measurement range(displacement) 0.001~1.999mm(Peak to peak: valid value*2√2)

Vibration pickup separated charge-amplifier and build-in acceleration transducer
