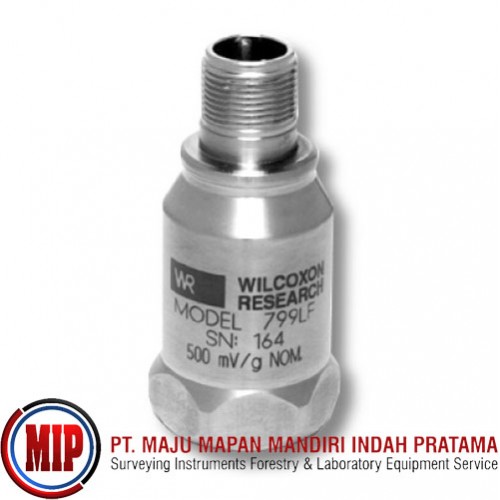

WILCOXON 799LF Accelerometer

Rp. 22,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Model 799LF

Top exit, low noise, 0.1 Hz low freq, MIL-C-5015 connector, 500 mV/g, ±5% sensitivity tolerance

Features

High sensitivity

Ultra low-noise electronics for clear signals at very low vibration levels

Low pass filtered to eliminate high frequencies

Optimized for 15V supply

ESD protection

PARAMETER VALUE

Sensor output Dynamic vibration (IEPE)

Sensitivity 500 mV/g

Sensitivity tolerance ±5 %

Frequency response 0.1 Hz - 2,500 Hz

Mounting Thread 1/4-28 UNF tapped hole

Connector style MIL-C-5015, 2-pin

Connector orientation Top exit

Full-scale range 10 g peak

Resonance frequency 18 kHz

Temperature range -50°C to +120°C

Weight 205 grams
