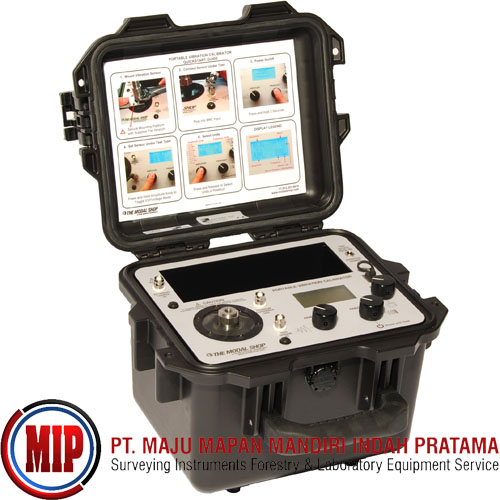

THE MODAL SHOP 9110D Portable Vibration Calibrator

The 9110D calculates and displays test sensor sensitivity on the readout screen in real time. It also has built-in ICP® input for common piezoelectric accelerometers. In addition, users can now save up to 500 calibration records directly to the unit's internal memory. These can also be copied or transferred to the included USB flash drive with Report Generation Workbook via the unit's USB port. The saved data can then be transferred to a computer and an ISO 17025-compliant  customizable Calibration Certificate generated and printed.

The unit is a compact, battery-powered and completely self-contained vibration reference source which can be conveniently used to calibrate individual sensors, vibration switches and data collectors, as well as to validate the entire measurement channel of a condition monitoring or recording system.

Highlights
An integral precision quartz reference accelerometer and closed-loop level control gives the 9110D enhanced stability and superior vibration calibration over an extended 5 Hz to 10 kHz frequency range. Packaged in a rugged Pelican® Storm case, the 9110D is always ready for travel to test sites and bringing laboratory accuracy to the field.

The unit is small and completely self-contained, providing a known vibration reference source from 5 Hz (300 CPM) up to 10 kHz (600k CPM), at amplitudes up to 20 g pk (196 m/s2), shaker stroke and sensor mass dependent. Packaged in a lightweight, durable Pelican® Case with two press and pull latches and padlockable caps, the 9110D is always ready for travel to test sites.

Calculates and displays test sensor sensitivity automatically
External source shaker drive BNC input
Reference monitor BNC output
Auto shut-off after 20 minutes
Battery life up to 18 hours
Best in class rugged portability
Sturdy internal shaker element design with carbon fiber composite armature flexures
Legendary protection and quality of Pelican® Cases
Watertight, crushproof
Two press and pull latches
Simple and elegant usability from the plant floor to metrology labs
Adjust frequency ranges and amplitude settings with just two dials
English or metric units on LCD screen
Lightweight at 18 lbs (8.2 kg) allowing for easy mobility
Battery life up to 18 hours
Precision control and stability
Integral ICP® quartz reference accelerometer
State of the art digital electronics
Ideal for in-situ validation of your entire measurement channel
Ensure end-to-end functionality
Confirm alarm trip points are set properly
Guarantees accuracy and reliability of test with integrated reference accelerometer traceable to NIST.

Supplied Accessories
Power Supply and Plug Adaptors
Mounting Wrench
081B20 Adaptor Stud (1/4-28 to 1/4-28)
081A08 Adaptor Stud (10-32 to 1/4-28)
QuickStart Guide
Manual
Mounting Pad
NIST Traceable Calibration Certificate
USB Flash Drive with Report Generation Workbook
