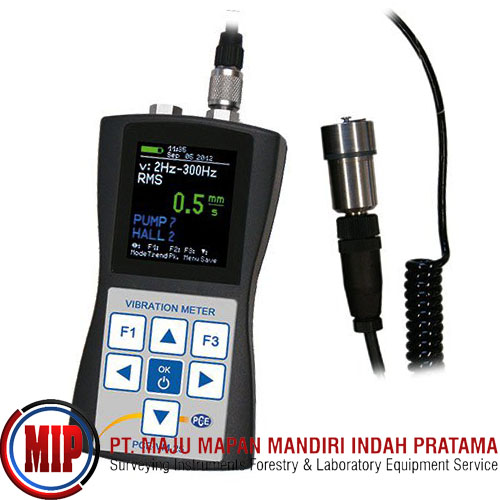

PCE VM25 Portable Vibration Analyzer

Vibration Analyser to monitor machines and roller bearing /contact-free temperature and rotational speed determination / OLED- color display / graphic display / data storage for 16,000 measurement values / USB interface

The PCE-VM 25 Vibration Analyser is designed for engine monitoring to assure a smooth operation of machines. Due to its simple application, the Vibration Analyser can be used for the measurement of a large range of parameters including acceleration, velocity and displacement. The Vibration Analyser not only shows the effective value but also the peak value and crest factor. The Vibration Analyser delivers detailed information on the current state as well as past history of the measurement values due to a spectral analysis and a tendency prognosis. Measured data can be transferred to a computer via a USB connection in order to evaluate it there in an optionally purchasable software. This allows long-term measurements to be recorded and reviewed in detail. Even if the data is not transferred, the Vibration Analyser has enough data storage capacity to save 16,000 measured values internally. There is also the option of purchasing VMID measurement slots.

Features:
Graphic diagram of tendency
Output for headphones
Multiple languages
OLED display
Automatic. recognition of measuring location due to sensor foot
Pocket design

What's in the Box:
(1) PCE-VM 25 Vibration Analyser
(1) Vibration meter sensor with spiral cable
(1) VMID measurement location
(1) USB cable
(1) Head phone adapter
(1) Calibration certificate
(1) Instruction manual
(1) Plastic case
