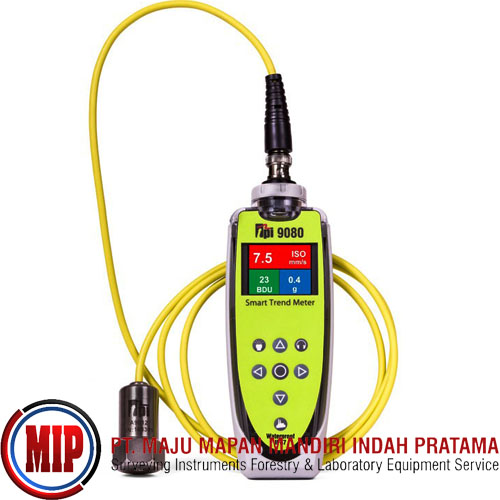

TPI 9080 Kit-2 Portable Vibration Analyzer

TPI Model 9080 Vibration Analyzer. The TPI 9080 is a simple, easy to use, low cost vibration meter that records, analyzes and displays vibration signals at the push of a button. Identify the vibration problem: unbalance, misalignment or looseness; in addition to the bearing condition. VibTrend standard software gives you greater ease of use and flexibility. Windows 7™ compatible.

Store analyze and report on all your vibration parameters in one place; up to 10 assets with 10 readings per asset standard; unlimited assets with 10 readings per asset with optional A9084 VibTrend Pro software.

All information is just a click away. Color coded alarms highlight problems. Trend lines show problems before they happen.
Overall machine and bearing conditions: vibration values are displayed with color coded alarm levels for ISO values and Bearing Damage (BOU).
Identify complex issues: 800-line spectrum with zoom and cursor.
Identify the vibration problem: unbalance, misalignment or looseness in addition to the bearing condition.

Features:
Collect data
Trend data using VibTrend software
Standard Cable mounted accelerometer with magnet
Built-in Bluetooth communication capability
USB docking station to download to a PC
ISO built-in Alarms
Easily identify bearing problems with BDU Reading
Easily identify problems with built-in band tilters: 1X (unbalance) 2X (misalignment) 3X (looseness)
800 line FFT (spectrum)
Ruggedized IP67 case
3-year Limited Warranty

What's in the Box:
(1) A9012 IEPE accelerometer with cable and A9073 magnet
(1) A9081 docking station with USB cable
(1) A9083 VibTrend Standard sofrware and carrying case
(1) A9082 Strobe/Flashlight
(1) A9084 VibTrend software Pro version
(1) A9080 Bluetooth headset
