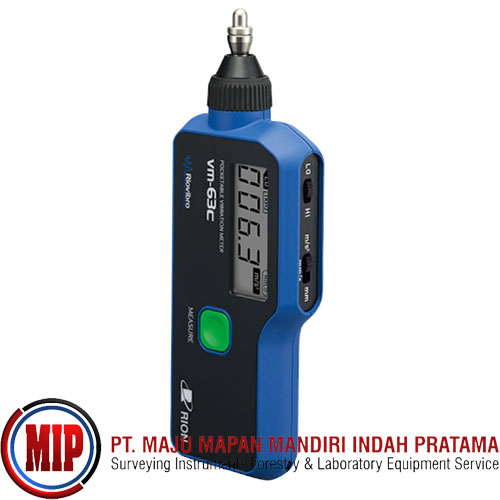

RION VM63C Portable Vibration Meter

Rp. 45,000,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Pocket-size vibration meter with integrated accelerometer.
* Designed for quick and easy use in the field.
* Suitable for preventive maintenance of industrial equipment, on-site quality control, product development, etc.

The VM-63C slips into your pocket so you can carry it with you for spot checks. It measures acceleration (in two selectable frequency ranges) or velocity or displacement so you can choose the parameter which best suits a specific product and leave the meter in that mode. All you have to do is put the sensor on the machine, press the ‘Meas’ button and you will see the measured vibration level within a couple of seconds.

Specifications
Applicable standards Chinese RoHS, CE marking
Type Piezoelectric accelerometer (shear type)
Measurement range Acceleration： 0.1 to 199.9 m/s2 EQ PEAK (RMS x √2)
Velocity： 0.1 to 199.9 mm/s RMS
Displacement： 0.001 to 1.999 mm EQ P-P (RMS x 2√2)
Measurement accuracy
(referenced to 80 Hz) Between -10 ºC and +50 ºC
Acceleration：±5 % ±2 digits
Velocity：±5 % ±2 digits
Displacement：±10 % ±2 digits
Outside of temperature range at left
Acceleration：±8 % ±2 digits
Velocity：±8 % ±2 digits
Displacement：±15 % ±2 digits
Vibration frequency range Acceleration：10 Hz to 1 kHz (LO) 1 kHz to 15 kHz (HI)
Velocity：10 Hz to 1 kHz
Displacement：10 Hz to 1 kHz
Display Display value is held when MEASURE button is released
Measurement：value display 3 1/2 digits, digital (LCD)
Display：update rate Approx. 1 s
Signal output Earphone (VP-37) can be connected
Output impedance Approx. 170 Ω
Load impedance Approx. 10 kΩ or higher
AC output Approx. ±2 V PEAK
Power supply IEC R6 (size AA) batteries (alkaline / manganese or
nickel-hydride rechargeable batteries) x 2
Current consumption：Approx. 35 mA
Battery life：About 50 h continuous use (at 25 ºC, with alkaline batteries)
Ambient conditions for operation -20 ºC to +60 ºC, 90 % RH or less (no condensation)
Dimensions and weight Approx. 178 (H) x 64 (W) x 27 (D) mm, approx. 200 g (incl. batteries)

Supplied accessories IEC R6 (size AA) alkaline batteries x 2,silicone rubber case x 1,Attachment S x 1
