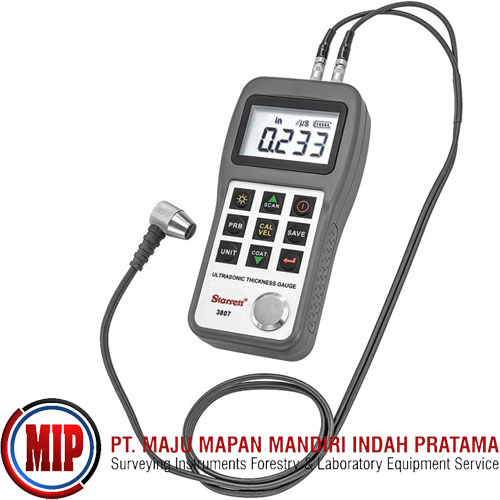

STARRET 3807 Ultrasonic Thickness Gauge

State of the art, digital ultrasonic thickness Gage is packed with features typically found on high end models only. The 3807 Ultrasonic Thickness Gage offers everything from basic measurement, Thru Coating capabilities, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and other ultrasonic wave conductors with parallel top and bottom surfaces. Accurately displays readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Type:Ultrasonic
Display Type:4.5 digit LCD w/Back Light
Minimum display unit:0.001”/0.01mm (selectable)
Measuring Range:Pulse-Echo: 0.025”-23.0” in steel; Echo-Echo: 0.118” – 3.50” Steel (up to 35mil coating)
Accuracy:+/- (0.5% thickness + .001”)
Sound Velocity Range:3280-32805 ft/s (1000-9999m/s)
Upper/Lower Limit Preset Alarm:Yes
Scanning Feature:Yes, 16 measurements/second
Operating Temperature:32-122 degrees F
Frequency:5MHz
Update Range:4Hz
Memory:20 Groups (100 files/group)
Output:USB via output cable
Power supply:Battery
Battery Type:AA alkaline batteries (2pc)
Power consumption:Working current is less than 3V
Battery Life:Approx. 100 hours (w/backlight off)
Dimensions LxWxT (in):5.90” x 2.91” x 1.30”
Weight (oz):8.6 oz
Weight (g):245g

In The Box
3807 Ultrasonic Thickness Tester
Cables
Couplant Gel
USB Cable
Manual
Case
