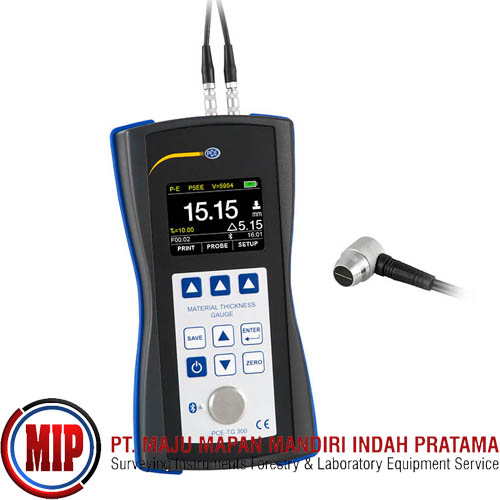

PCE TG300 Portable Ultrasonic Thickness Gauge

The PCE-TG 300 is a wall thickness gauge with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the PCE-TG 300. For damping or scattering materials such as plastic or cast a special sensor is available. An angled 90° sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the wall thickness gauge PCE-TG 300 and thus adapted to a wide variety of materials.



The measured values ​​are displayed directly on the easy-to-read TFT color display. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured.

- Large measuring range

- Various sensors available

- Battery operation

- Error and voids detection

- Internal measurement data memory

- Print via Bluetooth



Specification:

Measuring range PE: pulse-echo mode 0.65 ... 600 mm (steel)

  EE: echo-echo mode 2.50 ... 60 mm

Accuracy ± 0.04 mm H [mm] (<10 mm); ± 0.4% H [mm] (> 10 mm)

  H refers to the material thickness of the workpiece

Resolution 0.1 mm / 0.01 mm / 0.001 mm (adjustable)



Measurable materials Metals

  Plastics

  Ceramics

  Epoxy resin

  Glass

  And all homogeneous materials



Working modes Pulse echo mode (fault and blower detection)

  Echo-Echo mode (hiding layer thicknesses, eg paints)



Calibration Sound velocity calibration

  Zeroing

  Two-point calibration



View mode Normal mode, Scan mode, Difference mode

Units mm / inch

Data transfer Print via Bluetooth / USB 2.0

Storage Non-volatile memory with 100 data groups with 100 data sets each

Operating time Continuous operation 100 h

  Automatic stand-by mode (adjustable)

  Automatic switch-off mode (adjustable)



Power supply 4 x AA battery 1.5V

Display 320 x 240 pixels TFT LCD color display with brightness adjustment

Operating conditions 0 ... 50°C / 32 ... 122°F, ≤ 80% RH not condensing

Storage conditions -20 ... 70°C / -4 ... 158°F, ≤ 80% rh non-condensing

Dimensions 185 x 97 x 40 mm / 7.3 x 3.8 x 1.6 in

Weight 375 g / < 1 lb



Complette Package:

1 x Thickness gauge PCE-TG 300

1 x Sensor P5EE

1 x 100 ml coupling gel

1 x Transport case

4 x AA batteries

1 x User manual
