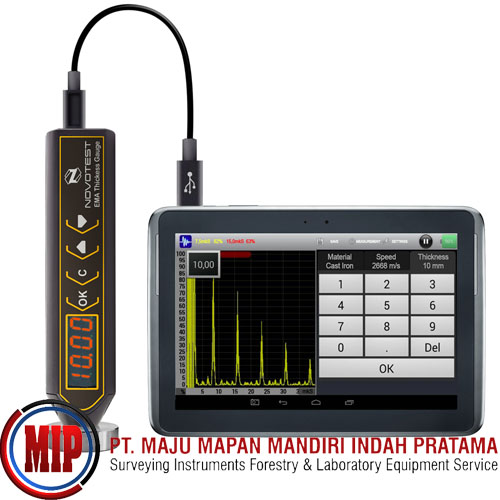

NOVOTEST UT-3K-EMA Ultrasonic Thickness Gauge

The thickness gauge UT-3K-EMA is designed for use in industrial networks, sheet metal products, rods and other products made of steel, as well as aluminum and other metals, without using of couplant, without preliminary surface preparation, with space between the probe and metal up to 3 mm. As a gap may be a layer of rust, a layer of salt deposits or other non-conductive coating (paint, varnish, enamel, plastic).

The readings of the device are slightly affected by skew, in contrast to traditional thickness gauges with piezoelectric transducers, which require fixation of the probe in a certain position. The thickness gauge UT-3K-EMA uses a special data processing algorithm that allows the thickness to be measured correctly in the presence of disturbing factors such as metal anisotropy, the presence of several reflectors, and the presence of external interference.

The algorithm developed by our specialists allows to reduce the human factor and simplify the interface of the device.

Connecting a tablet, smartphone or other device based on Android OS allows user to expand the capabilities of the UT-3K-EMA thickness gauge to the level of a modern flaw detector, with the ability to display and save A-scan, B-scan, the ability to work with strokes, choose the thickness measurement mode, parameters signal processing, etc.

Advantage:
Thickness measurement (steel) – 2…60 mm
Convenience and easy in operation
Preset velocity of ultrasound (1000 – 9999m/s) with 1 m/s step
Without application of couplant and advance surface preparation, through air gap or a layer of rust, dirt, salt or other non-conductive coatings (paint, varnish, enamel, plastic, etc.) up to 6 mm
Allows user to put the probe not exact perpendiculary to the surface, but up to 25 degrees
Allows to reduce the human factor and disturbing factors such as metal anisotropy, the presence of several reflectors, and the presence of external interference
User can connect gauge to a tablet, smartphone or other device based on Android OS. Allows user to expand the capabilities of the UT-3K-EMA thickness gauge to the level of a modern flaw detector, with the ability to display and save A-scan, B-scan, the ability to work with strokes, choose the thickness measurement mode, parameters signal processing, etc.
Acoustic contact indication on the graphic display
Fixation of the last measurement result in the removal of the transducer surface
Power supplied by standard AA batteries
Shock-resistant housing with a protective silicone bumper-case
The device has a bright contrast LCD display
A-scan, B-scan, calibration settings

Three thickness measurement modes:
– Automatic
– Manual mode, measurements are made using maximum in the first gate
– Manual mode, measurements are made using two maximums in two gates

Complette Package:
Electronic unit Ultrasonic Thickness Gauge
Transducer (probe) – 1 pc (depends on the desired range of controlled thickness)
Tablet
Charger
Cables
Operating manual
Case
