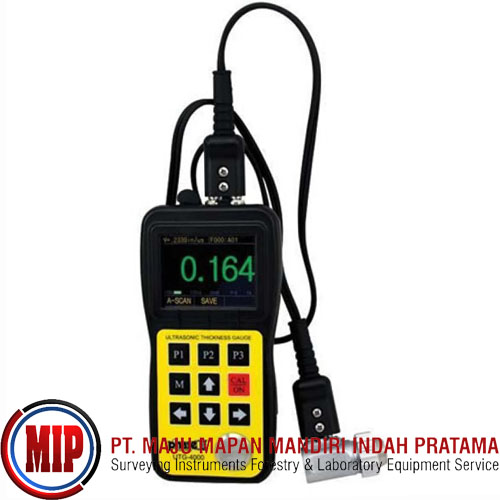

PHASE II+ UTG4000 Ultrasonic Thickness Gauge Scan and Thru Coating

Rp. 58,500,000

NOTE
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.

Utilizing color waveform A-scan and time based B-scan for absolute correctness, this new state of the art ultrasonic thickness gauge is packed with useful features allowing users to be confident of the displayed values on the most critical of applications. This Phase II+ UTG-4000 Ultrasonic Thickness Gauge w/ A & B Scan and Thru Coating Capability offers everything from basic measurement, Scan mode with Min/Max viewing, GO/NO GO display, Adjustable Sound Velocity and Thru-Coating Capabilities. This Phase II+ UTG4000 is designed to measure the thickness of metallic and non-metallic materials in critical situations that ordinary thickness gauges couldn’t do.

The Phase II+ UTG-4000 Ultrasonic Thickness Gauge w/ A & B Scan and Thru Coating Capability will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity

Features:
User-friendly interface
Optional A‐scan waveform display
Time based B‐scan function displays cross section of test piece
Different coupling status showing in different colors
Automatic alarm when the result exceeds the preset thickness range
Displays the minimum and maximum values when measuring
Getting the difference between the actual value and the normal value as well as the percentage
Inch / Metric Conversion
Extra large memory: up to 100,000 values & 1000 waveforms
Selectable Resolution: 0.001”, 0.01” or .01mm
Optional rectification mode: RF, full wave, half +, half -
Optional waveform: outline mode or filled mode

What's In The Box:
(1) Certificate of Calibration
(1) Operation Manual
(1) Custom Carry Case
