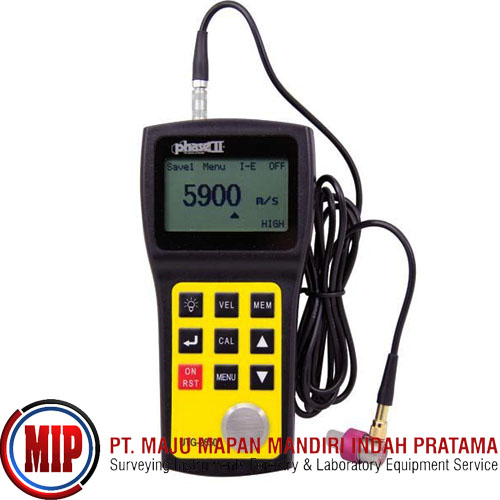

PHASE II+ UTG2650 Precission Ultrasonic Thickness Gauge

The Phase II UTG-2650 Ultra Precise Ultrasonic Thickness Gauge's ultrasonic technology allows you to obtain ultra precise thickness measurements and store them to memory. The Phase 2 UTG2650 digital tester is capable of reading wall thickness down to 0.010 with a super high adjustable resolution of up to 0.0001.

The Phase II UTG/2650's dynamic sonic gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wage conductor as long as it has parallel top and bottom surfaces. The Phase 2 UTG 2650 will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Specifications
Function    Details
Display type    4-digit LCD with Back Light
Display Resolution    Inch: 0.01", 0.001" or 0.0001" (selectable)
Metric: 0.1mm or 0.001mm (selectable)
Measuring range    Standard Mode: 0.010" - 0.787" (steel)
Accuracy    +/-0.0002" (0.005mm) if thickness < 3mm
+/-0.002" (0.05mm) if thickness < 20mm
Sound velocity range    3280-32805 ft/s (1000-9999m/s)
Adjustable
Upper/Lower Limit
Preset Alarm    Yes
Refresh Frequency    4MHz up to 25MHz
Memory    500 Test Values
Output    N/A
Operating temperature    32 - 122 °F (-5 - 40 °C)
Power Supply    1.5v AAA alkaline batteries (2)
Battery life    Approx. 250 hours / battery set
Power Consumption    Working current is less than 3V
Operating current    <20mA (3V)
Dimensions    4.9 x 2.6 x 0.9in. (161x 69 x 32mm)
Weight    0.7lbs (300g)
