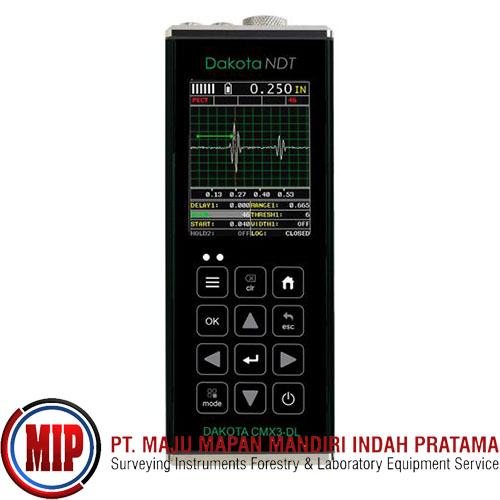

DAKOTA NDT CMX3-DL Ultrasonic Thickness Gauge

Dakota NDT CMX2-DL & CMX3-DL Datalogging Corrosion Thickness Gauges. The Dakota NDT CMX Series corrosion thickness gauge measures coatings and material thickness simultaneously while maintaining the ability to locate pits, flaws and defects in the material. The CMX gauge offers a range of measurement modes including Pulse-Echo, Echo-Echo, Pulse-Echo Temp, Comp Mode (PETP), Coating Only Mode (CT), and Pulse-Echo Coating Mode (PECT). The gauge also allows the user to set limits for pass/fail indication on an individual reading or for each batch with audible and visual warnings. The gauge features manual or automatic gain control (AGC) with adjustable 110dB range, gate control, threshold adjustment, and differential and minimal thickness alarm modes. The CMX gauge has a choice of display modes including Readings, B-Scan, B-Scan combined with readings, and Scan bar. The CMX2-DL and CMX3-DL models also include the A-Scan display mode. The gauge’s high speed scan mode provides 250 readings per second on the CMX1 and CMX1-DL models, and 50 readings per second on the CMX2-DL and CMX3-DL models. The CMX3-DL also features A-Scan portrait and landscape views. The CMX gauge offers 64 user-defined setups, transferable to and from a PC archive. Up to 4GB of readings can be saved into the gauge memory as each measurement is taken, which can be downloaded later into an inspection application or into DakMaster software for further analysis and reporting.

Specification:
PHYSICAL:
Weight: 13.5 ounces (with batteries).
Size: Width (2.5 in / 63.5 mm); Height (6.5 in / 165 mm); Depth (1.24 in / 31.5 mm)
Operating Temperature: 14 to 140°F (-10 to 60°C).
Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Keypad: Membrane swich pad with twelve tactile-feedback keys.
Data Output: USB-C port. Windows PC interface software.
Display (Two Options): CMX2-DL: 1/8in VGA grayscale display (240 x 160 pixels). Viewable area 2.4 x 1.8in (62 x 45.7mm). EL backlit (on/off/auto). 25Hz screen refresh rate.; CMX3-DL: 1/4 VGA AMOLED color display (320 x 240 pixels). Viewable area 1.7 x 2.27in (43.2 x 57.6mm). 60Hz screen refresh rate.
TRANSDUCER:
Transducer Types: Dual/Single Element (1 to 20MHz). Contact, matching layer, delay line, and pencil configurations.
Locking quick disconnect “00” LEMO connectors.
Standard 4 foot cable.
Custom transducers & cables lengths available for special applications.
POWER SOURCE:
Batteries: Three AA cells
Alkaline : Grayscale 35 hours. Color 12 hours.
Nicad : Grayscale 10 hours. Color 5 hours.
NI-MH : Grayscale 35 hours. Color 12 hours.
Power saving DIM (color), auto off 5 minutes. Battery status icon.
Line power: USB-C connected to PC or power outlet
ULTRASONIC SPECIFICATIONS:
Measurement Modes:
Coating Off: Pulse-Echo (P-E);
Coating On: Pulse-Echo Coating (PECT);
Temp Comp: Pulse-Echo Temperature; Compensation (PETP);
Thru-Paint: Echo-Echo (E-E);
Thru-Paint Verify: Echo-Echo Verify (E-EV);
Coating Only: Coating (CT);
Pulser: Dual square wave pulsers.
Reciever: Dual recievers - manual or AGC gain control with 110dB range (limited).
Adjustable damping (50-1500 ohms).
Timing: Precision TCXO timing with single
shot 100MHz 8 bit ultra low power digitizer.
DISPLAY:
Large Digits: Standard thickness view.
Digit Height: 0.700 inches (17.78mm). Color 0.565 in (14.35mm).
A-Scan: Rectified +/- (flaw view), RF (full waveform view). Portrait & landscape views (CMX3-DL only).
Pulse Repetition Frequency: 250Hz
A-Scan Refresh Rate: B&W 25Hz, color 60Hz.
B-Scan : Time based cross section view. Display speed variable (10 to 200 readings per second).
Scan Bar Thickness : Speed 33Hz. Viewable in B-Scan and Large Digit views.
Repeatability Bar Graph : Bar graph indicates stability of reading.
Feature Status Bar : Indicates features currently active.
MEMORY:
Log Formats: Grid (Alpha Numeric), or Sequential (Auto Identifier).
Capacity: 4Gb internal memory.
Screen Capture: Bitmap graphic capture for quick documentation (.tif ). OBSTRUCT to indicate inaccessible locations.
REPLACEMENT:
CMX2-DL replaces CMXDL+ & CG100ABDL
CMX3-DL replaces CMXDL+ Color & CG100ABDL+
MEASURING:
Pulse-Echo Mode (P-E): (Pit & Flaw
Detection) measures from 0.025 to 100ft. (0.63 to 30.48M).
Pulse-Echo Coating Mode (PECT): (Material, Coating, Pit & Flaw Detection)
Material: 0.025 to 100ft. (0.63 to 30.48M).
Coating: 0.001 to 0.100in (0.01 to 2.54mm).
Pulse-Echo Temp Comp Mode (PETP): (Pit & Flaw Detection) Auto temperaturecompensation - measures from 0.025 to 100ft. (0.63 to 30.48M)
Echo-Echo Mode (E-E): (Thru Paint & Coatings) measures from 0.100 to 6.0in (2.54 to 152.4mm). Range will vary +/- depending on the coating.
Echo-Echo Verify Mode (E-EV): (Thru Paint & Coatings) measures from 0.100 to 1.0in (2.54 to 102mm). Range will vary +/- depending on the coating.
Coating Only Mode (CT): (Coating Thickness) measures from 0.0005 to 0.100in (0.0127 to 2.54mm). Range will vary +/- depending on the coating.
Resolution: +/- 0.001 in (0.01mm). +/- 0.0001 in (0.001mm)
Velocity Range: 0.0122 to 0.7300 in/μs (309.88 to 18542 m/sec)
Single and Two point calibration option for material & coating, or selection of basic material types.
Units: English & Metric
CONNECTIONS:
Output: Direct USB-C 1.1 PC connectivity.
Transducer Connectors: Two LEMO 00 connectors.
CERTIFICATION:
Factory calibration traceable to NIST & MIL-STD-45662A.
WARRANTY:
2 year limited.

Include:
(1) CMX2-DL or CMX3-DL - Datalogging Corrosion Thickness Gauges
(1) Selectable Transducer
(1) Couplant
(1) Manual
(1) Plastic Carrying Case
(1) Certificate of Calibration
(4) AA Batteries
(1) PC Software and Data Transfer Cable
