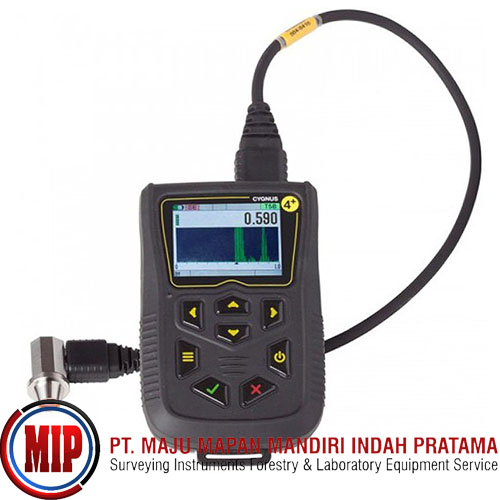

CYGNUS 4+ General Purphose Multi-Mode Ultrasonic Thickness Gauge
Harga dapat berubah sewaktu-waktu mengikuti perkembangan kurs rupiah terhadap mata uang asing lainnya sehingga sangat mungkin terjadi adanya perbedaan harga yang berlaku dengan harga yang tertera pada website kami.
The Cygnus 4+ - CYG-050-4500-S2C-T5B General Purpose Multi-Mode Ultrasonic Thickness Gauge is small, tough and accurate.Designed for the harshest of environments, with a simple to use keypad and intuitive menus and a color LCD display which can be viewed in all lighting conditions.
The twin shot injection molded enclosure has a soft but durable TPE outer skin which is both comfortable and extremely durable while the inner shell is strong, keeping the electronics totally sealed from the outside world.
The unit still relies on Multiple-Echo to provide simple and accurate measurements, with the added benefit of Echo-Echo and Single-Echo using twin crystal probes. Echo-Echo can be used for measurements on painted metals with potentially heavy back wall corrosion / pitting and Single-Echo for measurements on uncoated surfaces with heavy front face and/or back-wall corrosion and attenuative materials such as cast metals or plastics / composites.
Specifications:
Materials: Sound velocities between 2000 - 9000 m/s (0.079 - 0.35 in/ms) - covers virtually all common engineering materials
Accuracy: ±0.1 mm (±0.004”) or 0.1% of thickness measurement, whichever is greatest, when calibrated in accordance with Cygnus Instruments calibration procedure
Resolution: Multiple-Echo mode - 0.1 or 0.05 mm (0.005" or 0.002") / Single-Echo and Echo-Echo modes - 0.01 mm (0.0004")
Connector: Twin Lemo 00
Power: 3 x AA batteries
Battery Life: 10 hours minimum
Electronics: Dual channel pulser
Display: 2.4" quarter VGA LCD
Size: 5.20 in. x 3.23 in. x 1.34 in.) (132 mm x 82 mm x 34 mm)
Weight: 300 grams (10.58 oz) includes batteries
Operating Temp: 14°F to 122°F (10°C to 50°C)
Data Logging: Capacity for up to 5000 points including A-scans
Computer Software: CygLink allows remote logging and viewing of A-scan graphs. Survey and report generation to PDF file. Graphic analysis of data and statistical calculations. Designed for Windows 7 and Windows 8.
Includes:
(1) Padded Carry Case
(1) Probe S5A Single 5MHz 6mm with BNC connector with Probe Lead Twin Lemo 00 to BNC 1.35m (4'6")
(3) AA Batteries
(1) Adjustable Neck Strap and Loops
(1) Wrist Strap
(1) Accessory Pouch
(1) Spare membranes
(1) Surface and Membrane Couplant
(1) Steel Test Block
(1) Data Transfer Cable
(1) SD Card
(1) Operation Manual
