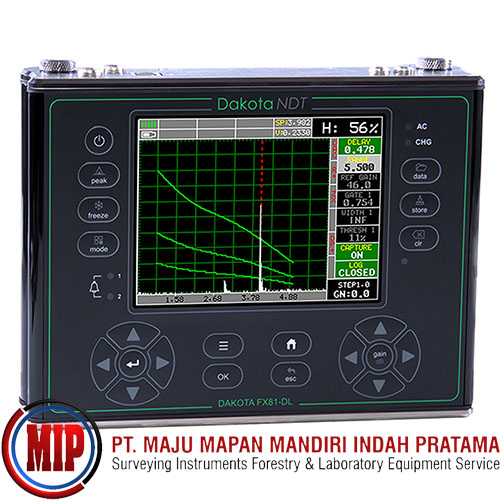

DAKOTA NDT FX80-DL Advanced Thickness Gauge with Flaw Detector

Dakota NDT FX80-DL (DFX-8) & FX81-DL (DFX-8+) Benchtop Flaw Detector and Ultrasonic Thickness Gauges. The Dakota NDT FX80 Series flaw detector and thickness gauge combines two tools into one. The time corrected gain (TCG) feature automatically compensates for sound attenuation through a material, further increasing the performance of the gauge. The thickness gauge features pulse-echo, echo-echo, pulse-echo temp comp, coating thickness, and pulse-echo coating thickness modes. The flaw detector DAC allows up to 8 points that can be entered and used digitally to draw a DAC curve. Within the grid batching of the FX80 flaw detector, the user has the capability to enter 'OBSTRUCT' on to the grid for easy identification of inaccessible locations to measure. Additional features of the FX80 series include either two adjustable square wave pulsers with voltage of 100 to 200V (FX80-DL model) or two tone burst pulsers with voltage of 100 to 400V (FX81-DL model). Both models of the FX80 series have a 1.8 to 19MHz broadband frequency band, and the FX81-DL model also includes six narrow bands at 0.5MHz, 1MHz, 2MHz, 5MHz, 10MHz, and 15MHz. The Dakota FX80 series flaw detector has a 6Gb internal memory and an external SD slot that allows up to 64Gb with full data logging via RS232 data output to DakMaster data management software.

Specification:
General:
Size: 8.5W x 6.5H x 2.5D in (216 x 165 x 70mm)
Weight: 4.5 lbs (2.04 kgs), with batteries
Case: Extruded aluminum body with nickel plated aluminum end caps (gasket sealed)
Display: Blanview sunlight readable QVGA TFT color display (320 x 240 pixels). Viewable area 4.54 x 3.40 in (115.2 x 86.4 mm), or 5.7 in (144.78 mm) diagonal. 16 color palette, multiple color options and variable brightness
Screen Refresh Rate: 60 Hz
Display Views: Flaw Detector: Full wave, +/- Rectified, or RF. Thickness Gauge: Digits, +/- Rectified, RF, or B-Scan
Timing: Precision TCXO timing with single shot 100 MHz 8 bit ultra low power digitizer
Measurement Gates: Two independent gates (Flaw), and three gates (thickness). Start & width adjustable over full range. Amplitude 5-95%, 1% steps. Positive or negative triggering for each gate with audible and visual alarms
Operating Temperature: 14 to 140F (-10C to 60C)
Environmental: Meets IP65 requirements
Lithium Ion Pack: 10.8v, 2 amp hrs, typical operation 18hrs
Battery Backup: Emergency battery backup. Six 1.5V alkaline, 1.2V AA Nicad cells, 1.2V AA NI-MH, or other other equivalent power source
Battery life (continuous use): Alkaline (12 hrs), Nicad (5hrs), and NI-MH (12hrs), with default settings
Warranty: 2 years
Calibration:
Automatic Calibration: Longitudinal (straight), or Shear (angle)
Probe Types: Single Contact, Dual, Delay, and Angle
Units: English (in), Metric (mm), or Time (µs)
Velocity: 0.0100 to .6300 in/µs (256 - 16,000 m/s)
Test Range: 0 to 0.303in (7.70mm) minimum, to 1200in (30,480mm) maximum at steel velocity. Continuously variable
Zero Offset (Probe Zero): 0 - 999.999 µs
Material Velocity Table: Contains longitudinal and shear velocities for a variety of material types
Pulser:
Pulser Type: Two adjustable square wave pulsers and receivers
P.R.F.: 8 to 2000Hz in selectable steps (8, 16, 32, 66, 125, 250, 333, 1000, 2000Hz)
Pulser Voltage: 100 - 200 volt peak amplitude, rise/fall time < 10ns into 50ohm
Pulse Width: 40 to 400 ns. Selectable step options 40, 80 & 400 ns (labeled spike, thin and wide)
Receiver:
Gain: 0 to 110dB with 0.2dB resolution. Manual and AGC control
Damping: 50, 75, 100, 300, 600, & 1500 ohms
Frequency Bands: Broadband 1.8 – 19 MHz (-3dB). Four narrow bands at 1MHz, 2MHz, 5MHz, 10MHz. DFX-8+ additional narrow bands at 0.5 & 15MHz
Horizontal Linearity: ± 0.4% FSW
Vertical Linearity: ± 1% FSH
Amplifier Linearity: ± 1 dB
Amplitude Measurement: 0 to 100% FSH, with 1% resolution
Delay: 0 - 999in (25,375mm) at steel velocity
Memory:
Log Formats: Grid (Alpha Numeric), or Sequential (Auto Identifier)
Memory: 4 Gb internal and up to 64 Gb External SD slot
Screen Capture: Bitmap graphic capture for quick documentation
Custom Setups: 64 user configurations
Video:
Remote Commander: Java PC software allows remote display and control for training/presentation purposes, and custom system integration
Transducers:
Delay Line: High Frequency single element delay line style for precision testing of thin materials
Pencil: High Frequency single element delay line style for testing of materials in tight access areas and difficult geometries
Contact: Single element contact style for general purpose longitudinal & Shear wave flaw detection
Dual: Pitch/Catch dual element style for longitudinal and Shear wave corrosion inspections
Certification:
Thickness Gauge: Factory calibration traceable to NIST & MIL-STD-45662A
Flaw Detector: EN12668-1 compliant

Include:
(1) FX80-DL or FX81-DL - Flaw Detector
(1) Couplant
(1) Manual
(1) Power cable
(1) Plastic carrying case
(1) Certificate of Calibration
(6) AA Batteries
(1) DakView3 PC software and cables
